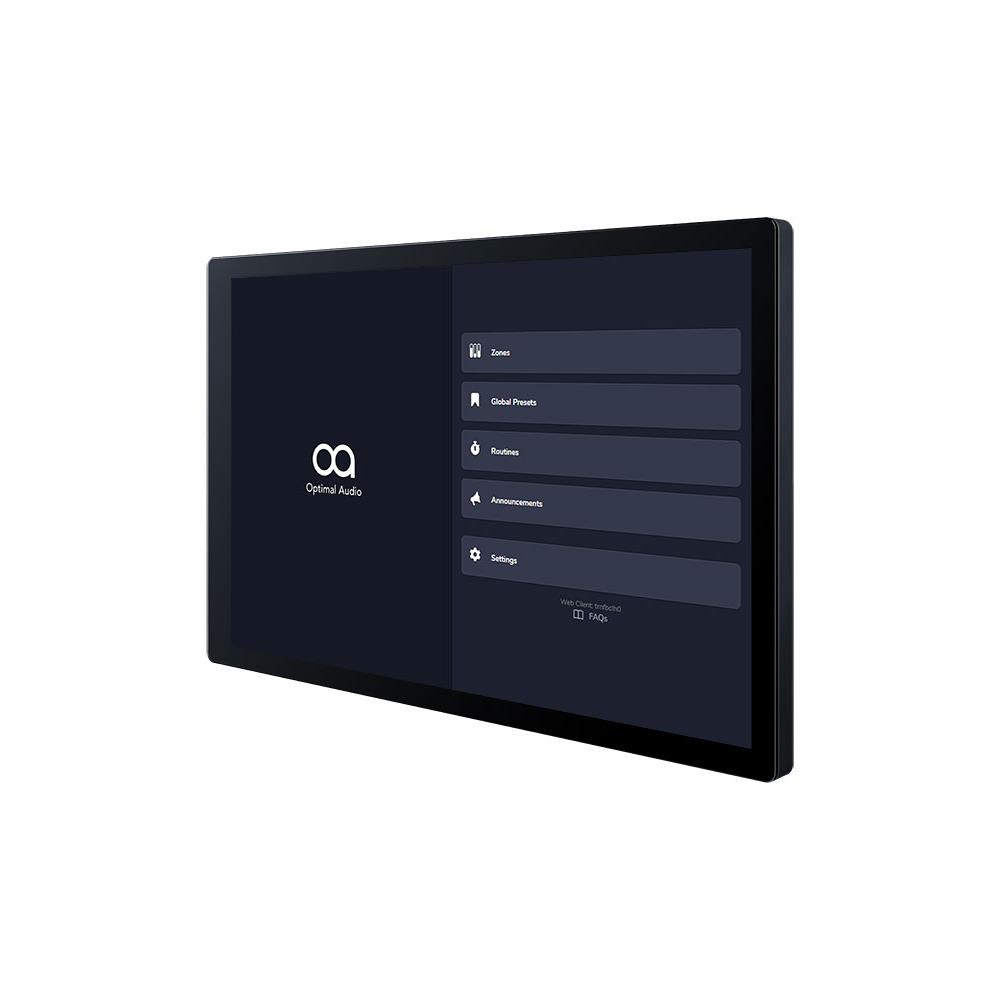

Optimal Audio ZonePad 8
Touchscreen wall controller
8" touch panel
The ZonePad 8 serves as a user friendly 8-inch touchscreen interface for controlling audio zones in multi-zone commercial venues. It allows users to adjust source selection, volume levels of sources and microphone across multiple zones from a wall-mounted touchscreen controller.
Description
ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user-friendly interface, providing users with the ability to operate complex audio systems effortlessly.
ZonePad 8 enables intuitive control of source switching, volume and microphone levels, as well as triggering advanced features like routines or message playback in up to eight zones, with advanced device configuration setting access to individual zones and permission settings over the functions available to each zone, making it ideal for dynamic commercial environments.
Its seamless integration with Optimal Audio Zone Controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs.
Power is delivered via POE from a compatible router or switch.
For venues where the installer cannot run cables, ZonePad 8 can be powered locally with an optional 12v power supply and connect to the network and Zone controller via WIFI.
ZonePad 8 Features
- 8-inch tempered glass touch panel
- Durable and impact-resistant
- Simple installation
- Auto-detection of Zone controllers
- Flexible mounting options
Applications for the ZonePad 8
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- 8 zone touchscreen wall controller
- DISPLAY
- 8-Inch, IPS, Capacitive, 10 multi touch points, tempered glass, impact resistant to IK2 standard
- RESOLUTION
- 1280 x 800, 189 DPI
- WEBAPP SYSTEM CONNECTION
- Ethernet via RJ45 adaptor / Wireless
- POWER
- POE or optional 12V adaptor
Technical Specifications
- TYPE
- 8 zone touchscreen wall controller
- DISPLAY
- 8-Inch, IPS, Capacitive, 10 multi touch points, tempered glass, impact resistant to IK2 standard
- RESOLUTION
- 1280 x 800, 189 DPI
- WEBAPP SYSTEM CONNECTION
- Ethernet via RJ45 adaptor / Wireless
- POWER
- POE or optional 12V adaptor
- COMPUTING
- Allwinner A133 Quad-Core Cortex-A53 @ 1.5GHz 2GB RAM OS – Android 14
- ENCLOSURE
- Satin finished ABS, UL94, V0 rated material
- COLOUR
- Black
- MOUNTING SYSTEM
- Supplied with surface mount plate, compatible with single gang EU, US, and UK back boxes
- DIMENSIONS
- (W) 189mm x (H) 119mm x (D) 15mm (W) 7.44” x (H) 4.68” x (D) 0.59”
- WEIGHT
- 0.32kg (0.70 lbs)
ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user-friendly interface, providing users with the ability to operate complex audio systems effortlessly.
ZonePad 8 enables intuitive control of source switching, volume and microphone levels, as well as triggering advanced features like routines or message playback in up to eight zones, with advanced device configuration setting access to individual zones and permission settings over the functions available to each zone, making it ideal for dynamic commercial environments.
Its seamless integration with Optimal Audio Zone Controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs.
Power is delivered via POE from a compatible router or switch.
For venues where the installer cannot run cables, ZonePad 8 can be powered locally with an optional 12v power supply and connect to the network and Zone controller via WIFI.
- 8-inch tempered glass touch panel
- Durable and impact-resistant
- Simple installation
- Auto-detection of Zone controllers
- Flexible mounting options
| TYPE | 8 zone touchscreen wall controller |
| DISPLAY | 8-Inch, IPS, Capacitive, 10 multi touch points, tempered glass, impact resistant to IK2 standard |
| RESOLUTION | 1280 x 800, 189 DPI |
| WEBAPP SYSTEM CONNECTION | Ethernet via RJ45 adaptor / Wireless |
| POWER | POE or optional 12V adaptor |
| COMPUTING | Allwinner A133 Quad-Core Cortex-A53 @ 1.5GHz 2GB RAM OS – Android 14 |
| ENCLOSURE | Satin finished ABS, UL94, V0 rated material |
| COLOUR | Black |
| MOUNTING SYSTEM | Supplied with surface mount plate, compatible with single gang EU, US, and UK back boxes |
| DIMENSIONS | (W) 189mm x (H) 119mm x (D) 15mm (W) 7.44” x (H) 4.68” x (D) 0.59” |
| WEIGHT | 0.32kg (0.70 lbs) |
