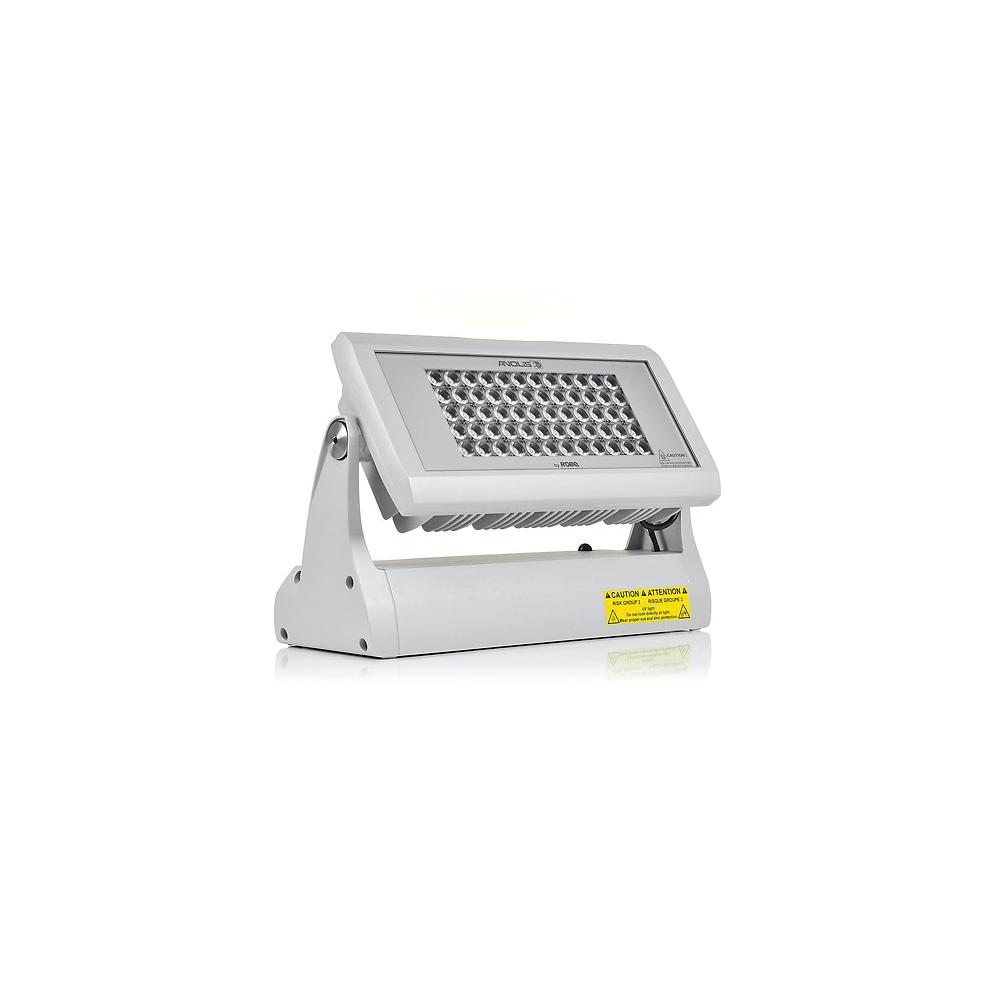

Anolis Divine™ 60 UV
Excellent for theme parks, attractions, leisure facilities and entertainment venues that require a true UV "black light" effect, both indoor and outdoor.
-large.jpg)
Description
The 180 Watt full LED luminaire produces high UV output levels at a 365nm wavelength. Inbuilt DMX and RDM control enables very precise lighting levels and the wireless control option allows retrofitting into existing installations without additional infrastructure. All the components are rated UV-stable and housed inside an IP67 rated casing, tough enough for the most challenging applications.
Standard Product Versions
- UV
Control Protocols / Options
- DMX+RDM
- 0-10V
- Auto / Standalone
- Wireless - Option
Optic Options
- 38°
Finish / Options
- RAL 9006 / Silver
- RAL 9011 / Graphite Black
- Custom Paint Colour Option
Standards & Certification
- European CE
- ETL
- UKCA
- RoHS
- IK10
- IP67
- 2 Years
- 5 Years (Registered)
Divine™ 60 UV Features
- Almost undetectable luminescence at normal lighting frequencies. Powerful output for indoor & outdoor effects.
- Lumen Output & Light Source
- 365nm (peak) UV
- 60 x UV Single Chips
- Projected Lumen Maintenance
- 16,000 hrs (L70@25°C)
- Power Consumption
- Typ. 180W
- Physical (max WxHxD)
- 463 x 314 x 237 mm - 14.5kg
- 18.2 x 12.4 x 9.3in. - 32lbs
- Aluminium Body, Tempered Glass
Applications for the Divine™ 60 UV
Resources & Downloads
Data sheets, manuals and resources for the Divine™ 60 UV
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- ELECTRICAL
- Input Voltage
- 100 - 277 V AC 50/60 Hz
- Typical Power Consumption
- 180 W +/- 10 %
- Inrush Current
- 30 A @ 230 V, 20 A @ 115V
- OPTICAL
Technical Specifications
- ELECTRICAL
- Input Voltage
- 100 - 277 V AC 50/60 Hz
- Typical Power Consumption
- 180 W +/- 10 %
- Inrush Current
- 30 A @ 230 V, 20 A @ 115V
- OPTICAL
- Light Source
- 60 x UV LEDs
- Wave Length
- 365 nm (peak)
- Beam Angle
- 38°
- Projected Lumen Maintenance
- 16.000 hrs (L70 @ 77 °F / 25 °C)
- CONTROL
- Display
- LED Display (Inside Integrated Junction Box), Chassis Mounted LED Display (Optional)
- Wireless DMX (Option)
- Lumen Radio CRMX Technology
- Interface Protocol
- USITT DMX512, RDM, 0-10 V
- Control System
- Third Party DMX Controllers
- Operating Modes
- DMX, Stand-alone
- DMX Modes
- 3
- DMX Channels
- 2, 3, 9
- Programs / Functions / Features
- Editable Program: 1 (up to 40 steps)
- Settings / Addressing
- Via LED Display with Control Buttons or RDM
- Power Supply
- Integrated
- PHYSICAL
- Width x Height x Depth
- 463 x 314 x 175 / 237 mm (18.2 x 12.4 x 6.9 / 9.3 in.)
- Weight
- 14.5 kg / 32 lbs
- Housing
- High Pressure Die-Cast Aluminium Body, Tempered Glass
- Finish Options
- Standard Colour - Graphite Black (RAL 9011), Silver (RAL 9006), Cost Option - Custom RAL
- Cables / Connections
- Integrated Junction Box With Terminal Block, Recommended: Li9Y11Y 3 x AWG16 + 1(2xAWG24)
- Mounting Method
- Surface Mount, Flush (J-Box), C-Clamp (For Side Connection Only)
- Adjustability
- +35° / -90°
- Protection Factor
- IP67 / Suitable For Wet Locations
- IK Rating
- IK10
- Cooling System
- Convection
- Operating Ambient Temperature
- -20 °C / +40 °C (-4 °F / +104 °F)
- Operating Temperature
- +70°C @ Ambient + 40°C (+158°F @ Ambient + 104°F)
- Total Heat Dissipation
- 680 BTU/h (calculated)
- CERTIFICATION
- Listings
- ETL / cETL, CE, RoHS
The 180 Watt full LED luminaire produces high UV output levels at a 365nm wavelength. Inbuilt DMX and RDM control enables very precise lighting levels and the wireless control option allows retrofitting into existing installations without additional infrastructure. All the components are rated UV-stable and housed inside an IP67 rated casing, tough enough for the most challenging applications.
Standard Product Versions
- UV
Control Protocols / Options
- DMX+RDM
- 0-10V
- Auto / Standalone
- Wireless - Option
Optic Options
- 38°
Finish / Options
- RAL 9006 / Silver
- RAL 9011 / Graphite Black
- Custom Paint Colour Option
Standards & Certification
- European CE
- ETL
- UKCA
- RoHS
- IK10
- IP67
- 2 Years
- 5 Years (Registered)
- Almost undetectable luminescence at normal lighting frequencies. Powerful output for indoor & outdoor effects.
- Lumen Output & Light Source
- 365nm (peak) UV
- 60 x UV Single Chips
- Projected Lumen Maintenance
- 16,000 hrs (L70@25°C)
- Power Consumption
- Typ. 180W
- Physical (max WxHxD)
- 463 x 314 x 237 mm - 14.5kg
- 18.2 x 12.4 x 9.3in. - 32lbs
- Aluminium Body, Tempered Glass
| ELECTRICAL | |
| Input Voltage | 100 - 277 V AC 50/60 Hz |
| Typical Power Consumption | 180 W +/- 10 % |
| Inrush Current | 30 A @ 230 V, 20 A @ 115V |
| OPTICAL | |
| Light Source | 60 x UV LEDs |
| Wave Length | 365 nm (peak) |
| Beam Angle | 38° |
| Projected Lumen Maintenance | 16.000 hrs (L70 @ 77 °F / 25 °C) |
| CONTROL | |
| Display | LED Display (Inside Integrated Junction Box), Chassis Mounted LED Display (Optional) |
| Wireless DMX (Option) | Lumen Radio CRMX Technology |
| Interface Protocol | USITT DMX512, RDM, 0-10 V |
| Control System | Third Party DMX Controllers |
| Operating Modes | DMX, Stand-alone |
| DMX Modes | 3 |
| DMX Channels | 2, 3, 9 |
| Programs / Functions / Features | Editable Program: 1 (up to 40 steps) |
| Settings / Addressing | Via LED Display with Control Buttons or RDM |
| Power Supply | Integrated |
| PHYSICAL | |
| Width x Height x Depth | 463 x 314 x 175 / 237 mm (18.2 x 12.4 x 6.9 / 9.3 in.) |
| Weight | 14.5 kg / 32 lbs |
| Housing | High Pressure Die-Cast Aluminium Body, Tempered Glass |
| Finish Options | Standard Colour - Graphite Black (RAL 9011), Silver (RAL 9006), Cost Option - Custom RAL |
| Cables / Connections | Integrated Junction Box With Terminal Block, Recommended: Li9Y11Y 3 x AWG16 + 1(2xAWG24) |
| Mounting Method | Surface Mount, Flush (J-Box), C-Clamp (For Side Connection Only) |
| Adjustability | +35° / -90° |
| Protection Factor | IP67 / Suitable For Wet Locations |
| IK Rating | IK10 |
| Cooling System | Convection |
| Operating Ambient Temperature | -20 °C / +40 °C (-4 °F / +104 °F) |
| Operating Temperature | +70°C @ Ambient + 40°C (+158°F @ Ambient + 104°F) |
| Total Heat Dissipation | 680 BTU/h (calculated) |
| CERTIFICATION | |
| Listings | ETL / cETL, CE, RoHS |
