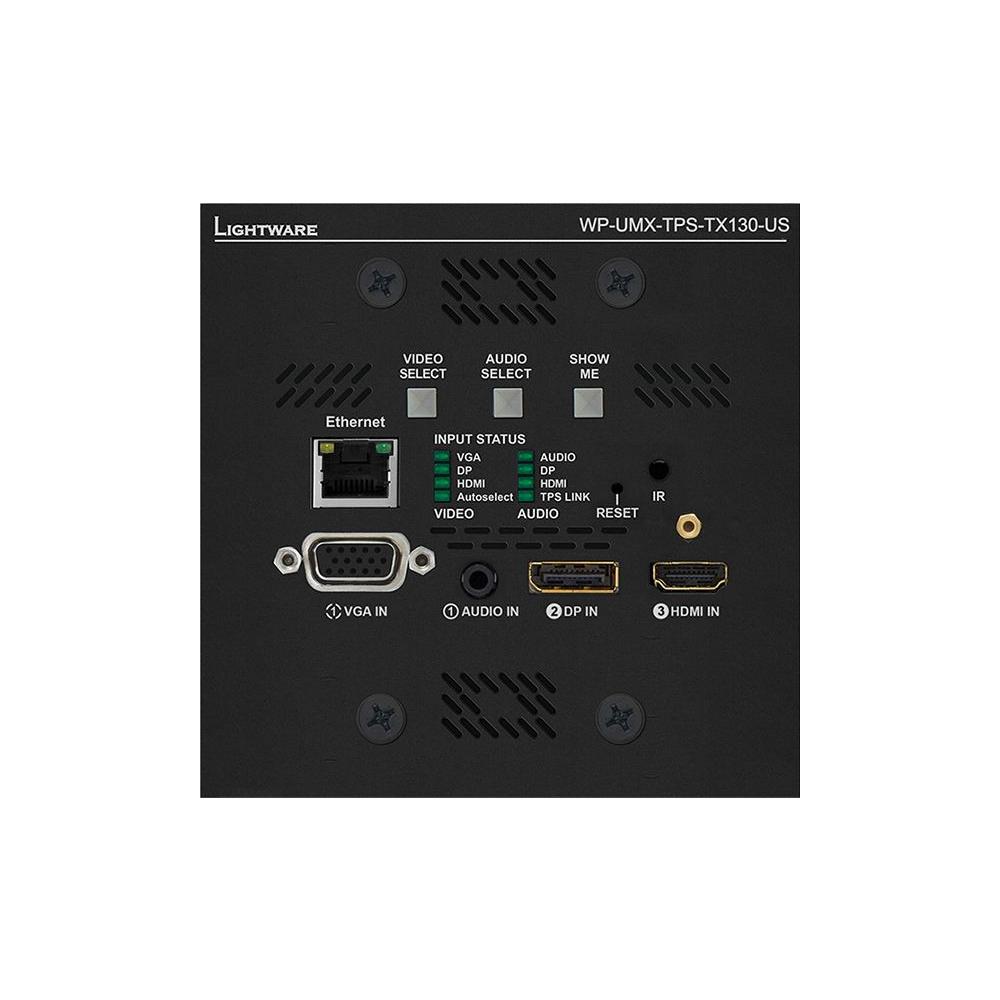

Lightware WP-UMX-TPS-TX130-US Black
UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI
WP‑UMX‑TPS‑TX130‑US Black / White transmits universal 4K video with audio and control up to a range of 170 m over a single CAT cable. This transmitter was designed for digital and analog video and audio signals: VGA, YprPb, HDMI 1.4 and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio.
-large.jpg)
Description
Universal Three-Input TPS (HDBaseTTM) Transmitter with Built-In Event Manager.
Highlight Features:
- 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
- Extends HDMI and VGA + Audio + Ethernet + RS-232 + IR over a single CAT5e... CAT7e cable up to 170 m distance*
- Event Manager
- 10/100 Ethernet extension
- Bi-directional RS-232 and IR
- IR and RS-232 connection supports command injection
- Embeds analog audio
WP-UMX-TPS-TX130-US wall plate transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YprPb, HDMI 1.4 and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.
Features
- 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
- Extends HDMI, VGA + Audio or DisplayPort + Ethernet + RS-232 + IR over a
single CAT5e...CAT7e cable up to 170 m distance* - Audio and video connectors: HDMI, VGA, DisplayPort, Stereo jack
- Embedded 7.1 HBR audio support
- Active cooling system
- Separate audio and video transmission
- Autoselect mode: video and audio priority modes
- Intuitive Control Software
- Event Manager
- 10/100 Ethernet extension
- Bi-directional RS-232 and IR
- IR and RS-232 connection supports command injection
- HDCP compliant, CEC, EDID transparent
- Embeds analog audio
- HDBaseT compatibility
- Advanced EDID management
- No signal latency
- Frame detector
- Remote powering through CAT cable
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control room
- Home cinema
Compatible Products
- MX Modular matrix frames with MX-TPS-IB or MX-TPS2-IB
- HDMI-TPS-RX90
- HDMI-TPS-RX95
- DVI-HDCP-TPS-RX95
- TPS-PI-1P1
- MMX6x2-HT200
- MMX6x2-HT210
- MMX6x2-HT220
WP-UMX-TPS-TX130-US Black Features
- Built-in Event Manager control automation feature
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Audio embedding (or replace original audio)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- Extends VGA, DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
- Bi-directional RS-232 and IR extension (pass-through and control)
Resources & Downloads
Data sheets, manuals and resources for the WP-UMX-TPS-TX130-US Black
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Contact Our TeamQuick Specs
- Power:
- 2-pole PHOENIX
- Volume:
- -96 .. 0 dB
- Weight:
- 457 g
- Balance:
- 0 .. 100%
- Control:
- IR
Technical Specifications
Universal Three-Input TPS (HDBaseTTM) Transmitter with Built-In Event Manager.
Highlight Features:
- 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
- Extends HDMI and VGA + Audio + Ethernet + RS-232 + IR over a single CAT5e... CAT7e cable up to 170 m distance*
- Event Manager
- 10/100 Ethernet extension
- Bi-directional RS-232 and IR
- IR and RS-232 connection supports command injection
- Embeds analog audio
WP-UMX-TPS-TX130-US wall plate transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YprPb, HDMI 1.4 and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.
Features
- 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
- Extends HDMI, VGA + Audio or DisplayPort + Ethernet + RS-232 + IR over a
single CAT5e...CAT7e cable up to 170 m distance* - Audio and video connectors: HDMI, VGA, DisplayPort, Stereo jack
- Embedded 7.1 HBR audio support
- Active cooling system
- Separate audio and video transmission
- Autoselect mode: video and audio priority modes
- Intuitive Control Software
- Event Manager
- 10/100 Ethernet extension
- Bi-directional RS-232 and IR
- IR and RS-232 connection supports command injection
- HDCP compliant, CEC, EDID transparent
- Embeds analog audio
- HDBaseT compatibility
- Advanced EDID management
- No signal latency
- Frame detector
- Remote powering through CAT cable
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control room
- Home cinema
Compatible Products
- MX Modular matrix frames with MX-TPS-IB or MX-TPS2-IB
- HDMI-TPS-RX90
- HDMI-TPS-RX95
- DVI-HDCP-TPS-RX95
- TPS-PI-1P1
- MMX6x2-HT200
- MMX6x2-HT210
- MMX6x2-HT220
- Built-in Event Manager control automation feature
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Audio embedding (or replace original audio)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- Extends VGA, DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
- Bi-directional RS-232 and IR extension (pass-through and control)
| Power: | 2-pole PHOENIX |
| Volume: | -96 .. 0 dB |
| Weight: | 457 g |
| Balance: | 0 .. 100% |
| Control: | IR |
| Ethernet: | 1 x RJ45 |
| Warranty: | 3 years |
| CONNECTORS | |
| Enclosure: | 1mm metal |
| Compliance: | CE |
| Dimensions: | 115,9 W x 114,3 H x 72,5 D |
| Resolution: | Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz, 1080p@120Hz |
| Audio input: | 3.5 mm stereo jack |
| EDID memory: | 119 factory preset, 15 user programmable |
| Local power: | 2-pole, DC 48V 500mA |
| Serial port: | 3-pole PHOENIX |
| TPS output: | 1 x RJ45 |
| EDID emulation: | Yes, Advanced EDID Management |
| Power over TPS: | DC 48V 0.25A |
| ANALOG AUDIO INPUT | |
| Power consumption: | 8,5W (typ) |
| Analog video input: | VGA connector |
| HDCP pass-through: | Yes |
| Digital video input: | HDMI connector, DisplayPort |
| RS-232 pass-through: | Yes, configurable |
| Digital audio formats: | Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| RS-232 (control option): | 4800, 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600) |
| Input cable equalization: | Automatic max 20 m |
| VGA to digital conversion: | 0 microseconds delay |
