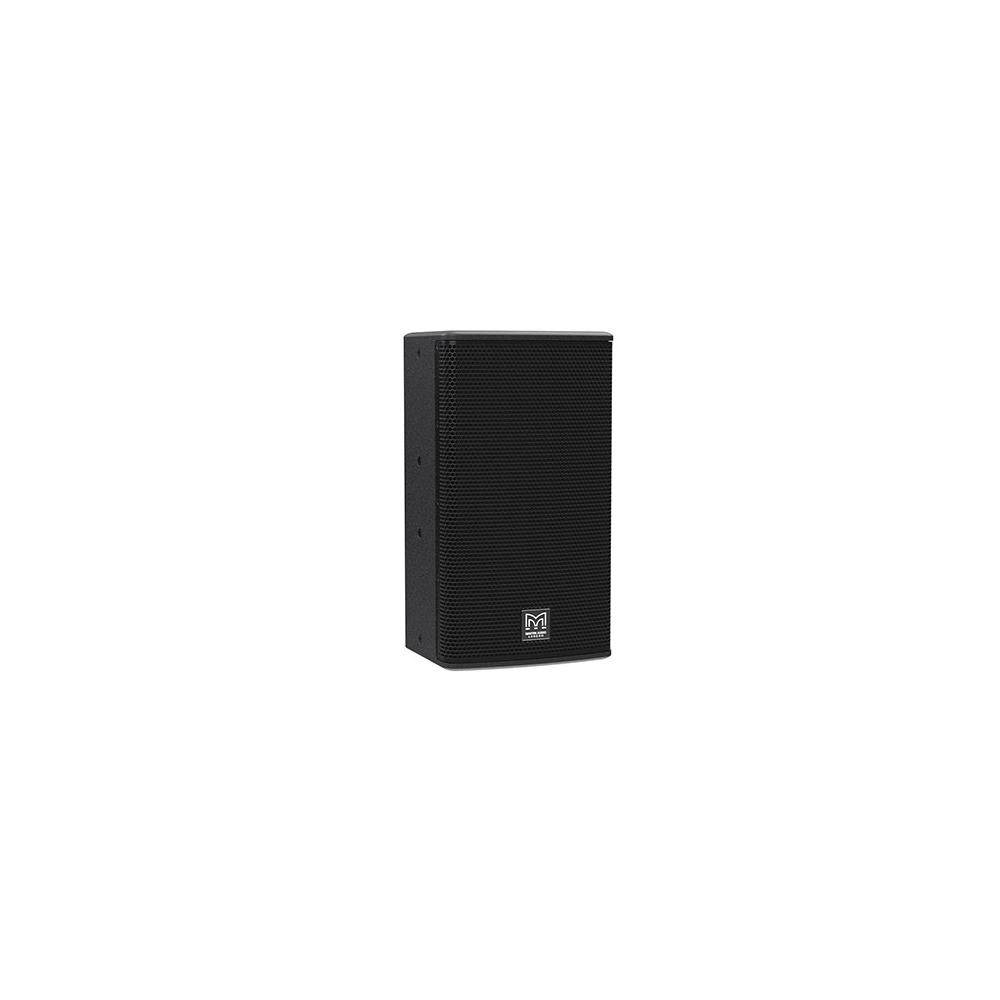

Martin Audio Blackline Q10
Two-Way Passive
Compact 10" System
With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome. The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements.
Description
Blackline Q10 offers exceptional versatility across a wide range of professional applications — from distributed sound reinforcement, houses of worship, and AV events to front-fill/in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure.
When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical.
Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications.
This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Blackline Q10 Features
- Compact passive two-way system
- Symmetrical multi-angle plywood enclosure
- Peak SPL of 125dB (131dB with crest factor 4)
- User-rotatable Differential Dispersion horn
- Dispersion: 90°–110° horizontal × 50° vertical
- Vertical and horizontal orientation
- Screw-tight, cloth-backed perforated steel grille
- Integrated ergonomic handle made from recycled ABS
- Pole-mount cover maintains clean lines8Ω nominal impedance
- Two NL4 connectors
- Flexible mounting options via M8 inserts
Resources & Downloads
Data sheets, manuals and resources for the Blackline Q10
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Compact, passive two-way loudspeaker
- FREQUENCY RESPONSE
- 63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz
- DRIVER (LF)
- 10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system
- DRIVER (HF)
- 1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil, polyimide dome
- RATED POWER
- 250 W AES, 1000 W peak
Technical Specifications
- TYPE
- Compact, passive two-way loudspeaker
- FREQUENCY RESPONSE
- 63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz
- DRIVER (LF)
- 10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system
- DRIVER (HF)
- 1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil, polyimide dome
- RATED POWER
- 250 W AES, 1000 W peak
- REQUIRED ELECTRONICS
- Processor and amplifier, or a combined amplifier-processor unit
- RECOMMENDED ELECTRONICS
- DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
- SENSITIVITY
- 95 dB
- MAXIMUM SPL
- 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
- NOMINAL IMPEDANCE
- 8 ohm
- DISPERSION
- 90°–110° (horizontal) × 50° (vertical), User-rotatable Differential Dispersion horn
- CROSSOVER
- 3 kHz passive
- ENCLOSURE
- Symmetrical multi-angle plywood
- FINISH
- Black textured paint
- PROTECTIVE GRILLE
- Black perforated steel grille with scrim cloth backing
- CONNECTORS
- 2 x NL4 connectors
- PIN CONNECTIONS (INPUT)
- 1+/1–
- PIN CONNECTIONS (LINK)
- 1+/1– to 1+/1– and 2+/2– to 2+/2–
- FITTINGS
- 15 x M8 inserts, 6 x M8 inserts for wall bracket, 1 x bar handle with recycled ABS pocket, Pole-mount socket with removable cover
- DIMENSIONS
- (W) 300 mm x (H) 545 mm x (D) 310 mm, (W) 11.8 in x (H) 21.5 in x (D) 12.2 in
- WEIGHT
- 15.3 kg (33.7 lbs)
- ACCESSORIES (OPTIONAL)
- Wall bracket WB10/12, M8 eye bolt HTKCT05, yoke, transit cover
Blackline Q10 offers exceptional versatility across a wide range of professional applications — from distributed sound reinforcement, houses of worship, and AV events to front-fill/in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure.
When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical.
Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications.
This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
- Compact passive two-way system
- Symmetrical multi-angle plywood enclosure
- Peak SPL of 125dB (131dB with crest factor 4)
- User-rotatable Differential Dispersion horn
- Dispersion: 90°–110° horizontal × 50° vertical
- Vertical and horizontal orientation
- Screw-tight, cloth-backed perforated steel grille
- Integrated ergonomic handle made from recycled ABS
- Pole-mount cover maintains clean lines8Ω nominal impedance
- Two NL4 connectors
- Flexible mounting options via M8 inserts
| TYPE | Compact, passive two-way loudspeaker |
| FREQUENCY RESPONSE | 63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz |
| DRIVER (LF) | 10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system |
| DRIVER (HF) | 1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil, polyimide dome |
| RATED POWER | 250 W AES, 1000 W peak |
| REQUIRED ELECTRONICS | Processor and amplifier, or a combined amplifier-processor unit |
| RECOMMENDED ELECTRONICS | DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor |
| SENSITIVITY | 95 dB |
| MAXIMUM SPL | 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4 |
| NOMINAL IMPEDANCE | 8 ohm |
| DISPERSION | 90°–110° (horizontal) × 50° (vertical), User-rotatable Differential Dispersion horn |
| CROSSOVER | 3 kHz passive |
| ENCLOSURE | Symmetrical multi-angle plywood |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel grille with scrim cloth backing |
| CONNECTORS | 2 x NL4 connectors |
| PIN CONNECTIONS (INPUT) | 1+/1– |
| PIN CONNECTIONS (LINK) | 1+/1– to 1+/1– and 2+/2– to 2+/2– |
| FITTINGS | 15 x M8 inserts, 6 x M8 inserts for wall bracket, 1 x bar handle with recycled ABS pocket, Pole-mount socket with removable cover |
| DIMENSIONS | (W) 300 mm x (H) 545 mm x (D) 310 mm, (W) 11.8 in x (H) 21.5 in x (D) 12.2 in |
| WEIGHT | 15.3 kg (33.7 lbs) |
| ACCESSORIES (OPTIONAL) | Wall bracket WB10/12, M8 eye bolt HTKCT05, yoke, transit cover |
