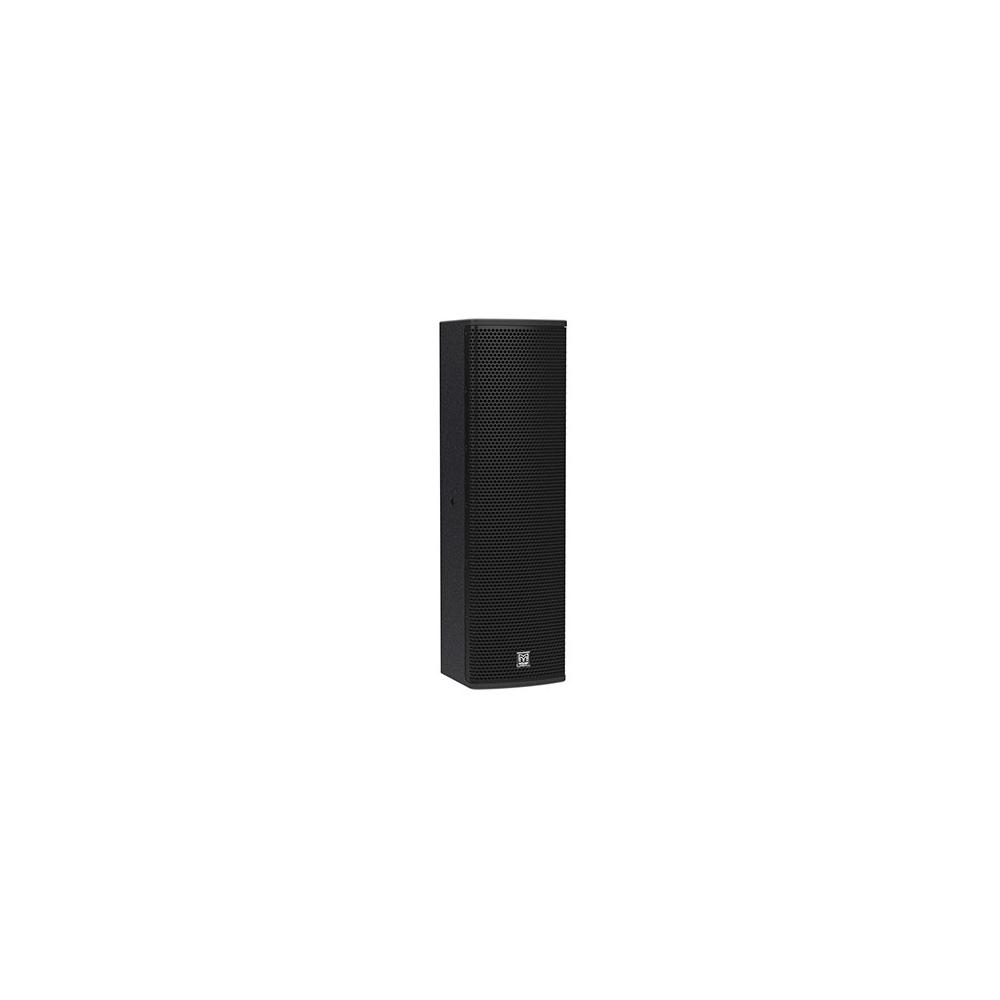

Martin Audio Blackline Q26
Two-Way Passive
Compact 2 X 6" Column System
Designed for venues where clarity and control are paramount, Blackline Q26 is a compact column loudspeaker that delivers a peak SPL of 125dB (131dB with crest factor 4) with precise coverage from a discreet footprint.
It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.
Description
Q26 features a dual 6” (150mm) LF driver with a 1.5” (38mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.
Constructed from durable plywood, Q26 is fitted with a screw-tight steel grille and includes M8 inserts for wall brackets, yokes and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.
Engineered for clarity and control, Q26 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.
Q26 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
Blackline Q26 Features
- Compact passive two-way system
- Lightweight, portable with a discreet design
- Peak SPL of 125dB (131dB with crest factor 4)
- Differential Dispersion horn
- Dispersion: 100°–120° horizontal × 40° vertical
- Screw-tight, cloth-backed perforated steel grille
- Pole-mount cover maintains clean lines8Ω nominal impedance
- One NL4 connector
- Flexible mounting options via M8 inserts
Applications for the Blackline Q26
Resources & Downloads
Data sheets, manuals and resources for the Blackline Q26
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Passive two-way compact column loudspeaker
- FREQUENCY RESPONSE
- 69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz
- DRIVER (LF)
- Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system
- DRIVER (HF)
- 1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
- RATED POWER
- 300 W AES, 1200 W peak
Technical Specifications
- TYPE
- Passive two-way compact column loudspeaker
- FREQUENCY RESPONSE
- 69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz
- DRIVER (LF)
- Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system
- DRIVER (HF)
- 1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
- RATED POWER
- 300 W AES, 1200 W peak
- REQUIRED ELECTRONICS
- Processor and amplifier, or a combined amplifier-processor unit
- RECOMMENDED ELECTRONICS
- DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
- SENSITIVITY
- 94 dB
- MAXIMUM SPL
- 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
- NOMINAL IMPEDANCE
- 8 ohm
- DISPERSION
- 100°–120° (horizontal) × 40° (vertical)
- CROSSOVER
- 2.4 kHz passive
- ENCLOSURE
- Durable plywood
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel grille with scrim cloth backing
- CONNECTORS
- 1 x NL4 connector
- PIN CONNECTIONS (INPUT)
- 1+/1–
- PIN CONNECTIONS (LINK)
- NA
- FITTINGS
- 3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket, 1 x pocket handle made from recycled ABS, Pole-mount socket with removable cover
- DIMENSIONS
- (W) 193 mm x (H) 670 mm x (D) 218 mm, (W) 7.6 in x (H) 26.4 in x (D) 8.6 in
- ACCESSORIES (OPTIONAL)
- Wall bracket WB6/8, M8 eye bolt HTKCT05, yoke, transit cover
Q26 features a dual 6” (150mm) LF driver with a 1.5” (38mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.
Constructed from durable plywood, Q26 is fitted with a screw-tight steel grille and includes M8 inserts for wall brackets, yokes and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.
Engineered for clarity and control, Q26 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.
Q26 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.
- Compact passive two-way system
- Lightweight, portable with a discreet design
- Peak SPL of 125dB (131dB with crest factor 4)
- Differential Dispersion horn
- Dispersion: 100°–120° horizontal × 40° vertical
- Screw-tight, cloth-backed perforated steel grille
- Pole-mount cover maintains clean lines8Ω nominal impedance
- One NL4 connector
- Flexible mounting options via M8 inserts
| TYPE | Passive two-way compact column loudspeaker |
| FREQUENCY RESPONSE | 69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz |
| DRIVER (LF) | Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system |
| DRIVER (HF) | 1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome |
| RATED POWER | 300 W AES, 1200 W peak |
| REQUIRED ELECTRONICS | Processor and amplifier, or a combined amplifier-processor unit |
| RECOMMENDED ELECTRONICS | DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor |
| SENSITIVITY | 94 dB |
| MAXIMUM SPL | 119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4 |
| NOMINAL IMPEDANCE | 8 ohm |
| DISPERSION | 100°–120° (horizontal) × 40° (vertical) |
| CROSSOVER | 2.4 kHz passive |
| ENCLOSURE | Durable plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel grille with scrim cloth backing |
| CONNECTORS | 1 x NL4 connector |
| PIN CONNECTIONS (INPUT) | 1+/1– |
| PIN CONNECTIONS (LINK) | NA |
| FITTINGS | 3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket, 1 x pocket handle made from recycled ABS, Pole-mount socket with removable cover |
| DIMENSIONS | (W) 193 mm x (H) 670 mm x (D) 218 mm, (W) 7.6 in x (H) 26.4 in x (D) 8.6 in |
| ACCESSORIES (OPTIONAL) | Wall bracket WB6/8, M8 eye bolt HTKCT05, yoke, transit cover |
