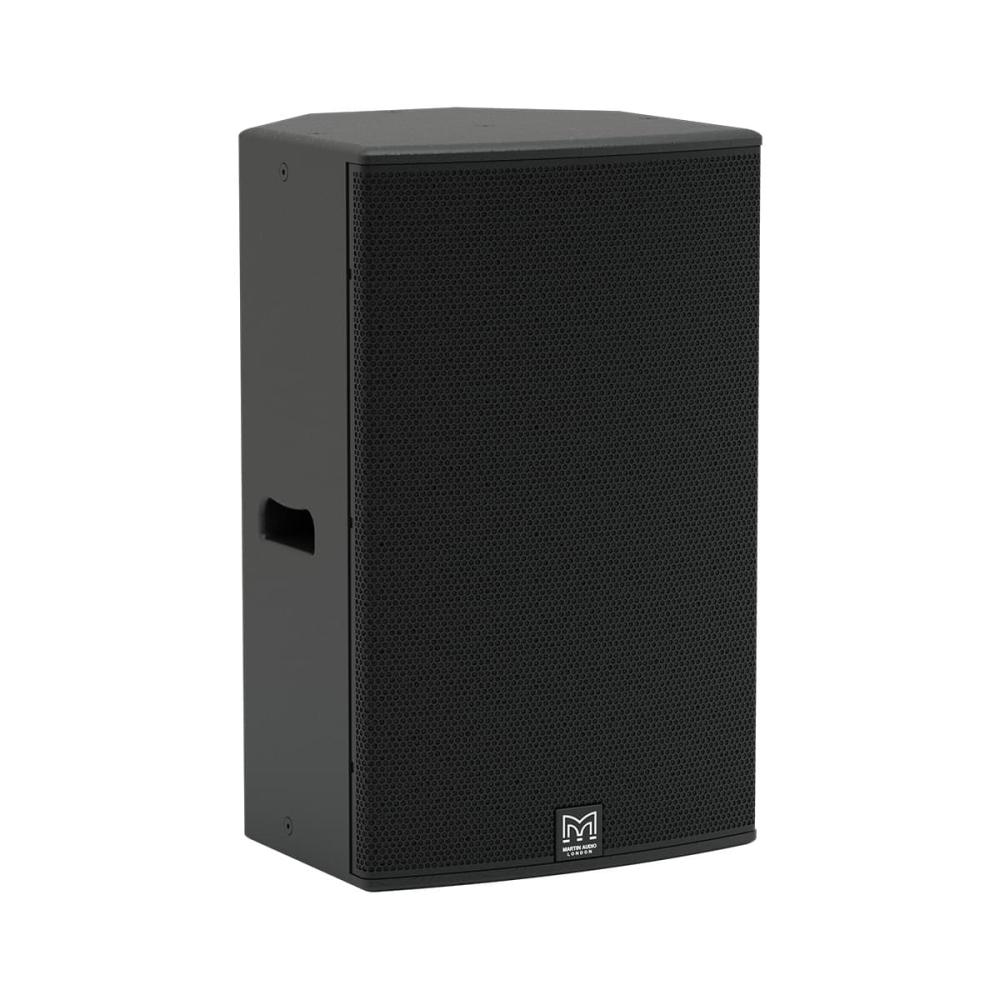

Martin Audio Blackline XP15
Two-Way System
15", High output, Self-powered
-large.jpg)
Description
Featuring a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.
Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
Blackline XP15 Features
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection, Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount and flying inserts
Resources & Downloads
Data sheets, manuals and resources for the Blackline XP15
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- ACOUSTICS
- Type
- High output, self-powered two-way system
- Frequency Response
- 55Hz – 20kHz ±3dB, -10dB @ 45Hz
- Drivers
- LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system, HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- Maximum SPL
- 125dB continuous / 131dB peak
Technical Specifications
- ACOUSTICS
- Type
- High output, self-powered two-way system
- Frequency Response
- 55Hz – 20kHz ±3dB, -10dB @ 45Hz
- Drivers
- LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system, HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- Maximum SPL
- 125dB continuous / 131dB peak
- Dispersion
- 80° H x 50° V (user-rotatable)
- Crossover
- 2kHz active, 24dB/octave
- MODULE: AUDIO IN/OUT
- Input Connectors
- 2 x female XLR/ 1⁄4” jack combo
- Mic/Line Input Impedance
- 8 kΩ balanced
- 1⁄4” Jack TS Input Impedance
- 1 MΩ unbalanced
- Mix Output Connector
- 1 x male XLR
- Mix Output Impedance
- 600Ω balanced
- INTERNAL PROCESSING
- Input channel EQ
- 3-band on each channel plus HPF (Ch1/2)
- Speaker EQ
- 3 speaker mode/voicing presets
- Protection
- LF and HF Peak and RMS limiting, amplifier thermal protection
- AMPLIFIER MODULE
- Type.
- 2 channel switch-mode, Class D
- Peak Output Power
- 1300W total, 1000W LF, 300W HF
- Average Efficiency
- 89%
- Cooling
- External convection cooled
- Maximum Ambient Temperature
- 35°C (95°F) for full output
- POWER SUPPLY
- Type:
- Switch-mode, fixed frequency with PFC
- AC Input Operating Range
- 100-240V ~ AC, 50 - 60Hz
- Power Factor
- > 0.98
- Nominal Power Consumption
- 550W Max
- Mains Connector
- 3-pin IEC
- MECHANICAL
- Enclosure
- Multi-angle birch/poplar ply
- Finish
- Black textured paint
- Protective Grille
- Black perforated steel with scrim cloth backing
- Fittings
- 13 x M8 inserts, pole-mount socket, 2 x pocket handles
- Dimensions
- (W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in
- Weight
- 26kg (57lbs)
- Accessories
- Eyebolts
Featuring a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.
Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection, Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount and flying inserts
| ACOUSTICS | |
| Type | High output, self-powered two-way system |
| Frequency Response | 55Hz – 20kHz ±3dB, -10dB @ 45Hz |
| Drivers | LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system, HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| Maximum SPL | 125dB continuous / 131dB peak |
| Dispersion | 80° H x 50° V (user-rotatable) |
| Crossover | 2kHz active, 24dB/octave |
| MODULE: AUDIO IN/OUT | |
| Input Connectors | 2 x female XLR/ 1⁄4” jack combo |
| Mic/Line Input Impedance | 8 kΩ balanced |
| 1⁄4” Jack TS Input Impedance | 1 MΩ unbalanced |
| Mix Output Connector | 1 x male XLR |
| Mix Output Impedance | 600Ω balanced |
| INTERNAL PROCESSING | |
| Input channel EQ | 3-band on each channel plus HPF (Ch1/2) |
| Speaker EQ | 3 speaker mode/voicing presets |
| Protection | LF and HF Peak and RMS limiting, amplifier thermal protection |
| AMPLIFIER MODULE | |
| Type. | 2 channel switch-mode, Class D |
| Peak Output Power | 1300W total, 1000W LF, 300W HF |
| Average Efficiency | 89% |
| Cooling | External convection cooled |
| Maximum Ambient Temperature | 35°C (95°F) for full output |
| POWER SUPPLY | |
| Type: | Switch-mode, fixed frequency with PFC |
| AC Input Operating Range | 100-240V ~ AC, 50 - 60Hz |
| Power Factor | > 0.98 |
| Nominal Power Consumption | 550W Max |
| Mains Connector | 3-pin IEC |
| MECHANICAL | |
| Enclosure | Multi-angle birch/poplar ply |
| Finish | Black textured paint |
| Protective Grille | Black perforated steel with scrim cloth backing |
| Fittings | 13 x M8 inserts, pole-mount socket, 2 x pocket handles |
| Dimensions | (W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in |
| Weight | 26kg (57lbs) |
| Accessories | Eyebolts |
