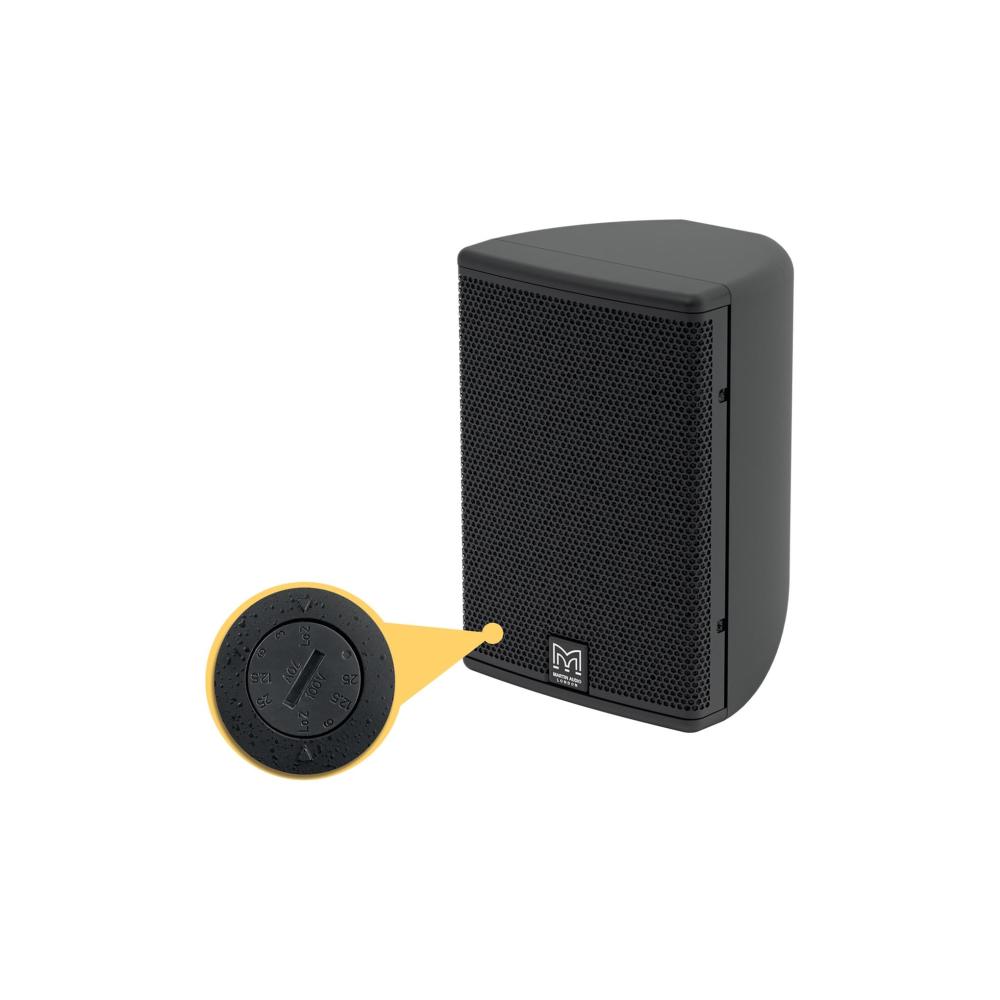

Martin Audio CDD5TX-WR
Two-Way Passive
5" with 70/100V Line Transformer (Weatherised)
-large.jpg)
Description
The Coaxial Differential Dispersion technology employed in the CDD5TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
CDD5TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.
A full-range, passive two-way system, the CDD5TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
CDD5TX-WR Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant ABS moulded enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
- Supplied with ‘pan and tilt’ weatherised mounting bracket
Applications for the CDD5TX-WR
Resources & Downloads
Data sheets, manuals and resources for the CDD5TX-WR
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Ultra-compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE
- 100Hz-20kHz ± 3dB -10dB @ 70Hz
- DRIVER
- LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
- RATED POWER
- 100W AES, 400W peak
- TRANSFORMER SETTINGS 100V line
- 6W, 12.5W, 25W
Technical Specifications
- TYPE
- Ultra-compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE
- 100Hz-20kHz ± 3dB -10dB @ 70Hz
- DRIVER
- LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
- RATED POWER
- 100W AES, 400W peak
- TRANSFORMER SETTINGS 100V line
- 6W, 12.5W, 25W
- TRANSFORMER SETTINGS 70V line
- 3W, 6W, 12.5W, 25W
- RECOMMENDED AMPLIFIER
- iK81
- SENSITIVITY
- 90dB
- MAXIMUM SPL
- 110dB continuous, 116dB peak, 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB
- NOMINAL IMPEDANCE
- 8 ohms
- DISPERSION (-6dB)
- 120°-90° horizontal, 80° vertical (user-rotatable)
- CROSSOVER
- 2.5kHz passive
- ENCLOSURE
- 3 litre, ABS
- FINISH
- Black or white as standard (RAL as cost option)
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M5 inserts for wall/ceiling brackets
- DIMENSIONS
- (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
- WEIGHT
- 3.4kg (7.5lbs)
- ACCESSORIES INCLUDED
- Wall bracket black, Wall bracket white
- ACCESSORIES OPTIONAL
- CDDCB5B ceiling bracket black, CDDCB5W ceiling bracket white
The Coaxial Differential Dispersion technology employed in the CDD5TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
CDD5TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.
A full-range, passive two-way system, the CDD5TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant ABS moulded enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
- Supplied with ‘pan and tilt’ weatherised mounting bracket
| TYPE | Ultra-compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 100Hz-20kHz ± 3dB -10dB @ 70Hz |
| DRIVER | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER | 100W AES, 400W peak |
| TRANSFORMER SETTINGS 100V line | 6W, 12.5W, 25W |
| TRANSFORMER SETTINGS 70V line | 3W, 6W, 12.5W, 25W |
| RECOMMENDED AMPLIFIER | iK81 |
| SENSITIVITY | 90dB |
| MAXIMUM SPL | 110dB continuous, 116dB peak, 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6dB) | 120°-90° horizontal, 80° vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 3 litre, ABS |
| FINISH | Black or white as standard (RAL as cost option) |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with dual cable glands |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M5 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins |
| WEIGHT | 3.4kg (7.5lbs) |
| ACCESSORIES INCLUDED | Wall bracket black, Wall bracket white |
| ACCESSORIES OPTIONAL | CDDCB5B ceiling bracket black, CDDCB5W ceiling bracket white |
