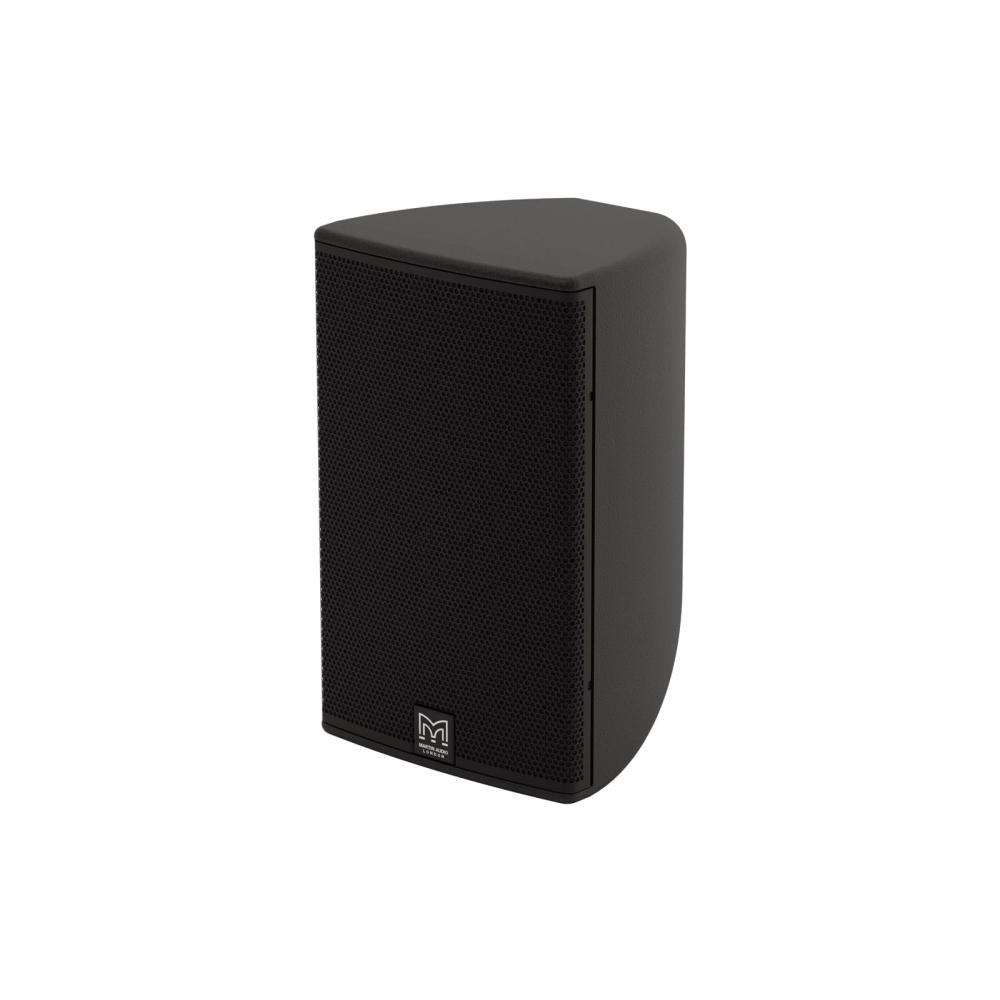

Martin Audio CDD8TX-WR
Two-Way Passive
8" with 70/100V Line Transformer (Weatherised)
-large.jpg)
Description
The Coaxial Differential Dispersion technology employed in the CDD8-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling weatherised brackets.
CDD8TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.
A full-range, passive two-way system, the CDD8TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
CDD8TX-WR Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
Applications for the CDD8TX-WR
Resources & Downloads
Data sheets, manuals and resources for the CDD8TX-WR
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE
- 70Hz-20kHz ± 3dB -10dB @ 55Hz
- DRIVER
- LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF, HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER
- 200W AES, 800W peak
- RECOMMENDED AMPLIFIER
- iK81
Technical Specifications
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE
- 70Hz-20kHz ± 3dB -10dB @ 55Hz
- DRIVER
- LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF, HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- RATED POWER
- 200W AES, 800W peak
- RECOMMENDED AMPLIFIER
- iK81
- TRANSFORMER SETTINGS
- 110V/70V line: 120W, 60W, 30W, 15W
- SENSITIVITY
- 94dB
- MAXIMUM SPL
- 117dB continuous, 123dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110°-80° horizontal, 60° vertical (user-rotatable)
- CROSSOVER
- 2.3kHz passive
- ENCLOSURE
- 14 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 13A push-lock, weatherproof input panel cover with cable gland
- PHOENIX CONNECTOR 5 WAY
- Common, 120W, 60W, 30W, 15W
- FITTINGS
- 6 x M6 inserts for wall/ceiling brackets
- DIMENSIONS
- (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
- WEIGHT
- 11.4kg (25.13lbs)
- ACCESSORIES
- CDDWB6/8B wall bracket black, CDDWB6/8W wall bracket white, CDDCB6/8B ceiling bracket black, CDDCB6/8W ceiling bracket white
The Coaxial Differential Dispersion technology employed in the CDD8-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling weatherised brackets.
CDD8TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.
A full-range, passive two-way system, the CDD8TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 70Hz-20kHz ± 3dB -10dB @ 55Hz |
| DRIVER | LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF, HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER | 200W AES, 800W peak |
| RECOMMENDED AMPLIFIER | iK81 |
| TRANSFORMER SETTINGS | 110V/70V line: 120W, 60W, 30W, 15W |
| SENSITIVITY | 94dB |
| MAXIMUM SPL | 117dB continuous, 123dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110°-80° horizontal, 60° vertical (user-rotatable) |
| CROSSOVER | 2.3kHz passive |
| ENCLOSURE | 14 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with cable gland |
| PHOENIX CONNECTOR 5 WAY | Common, 120W, 60W, 30W, 15W |
| FITTINGS | 6 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins |
| WEIGHT | 11.4kg (25.13lbs) |
| ACCESSORIES | CDDWB6/8B wall bracket black, CDDWB6/8W wall bracket white, CDDCB6/8B ceiling bracket black, CDDCB6/8W ceiling bracket white |
