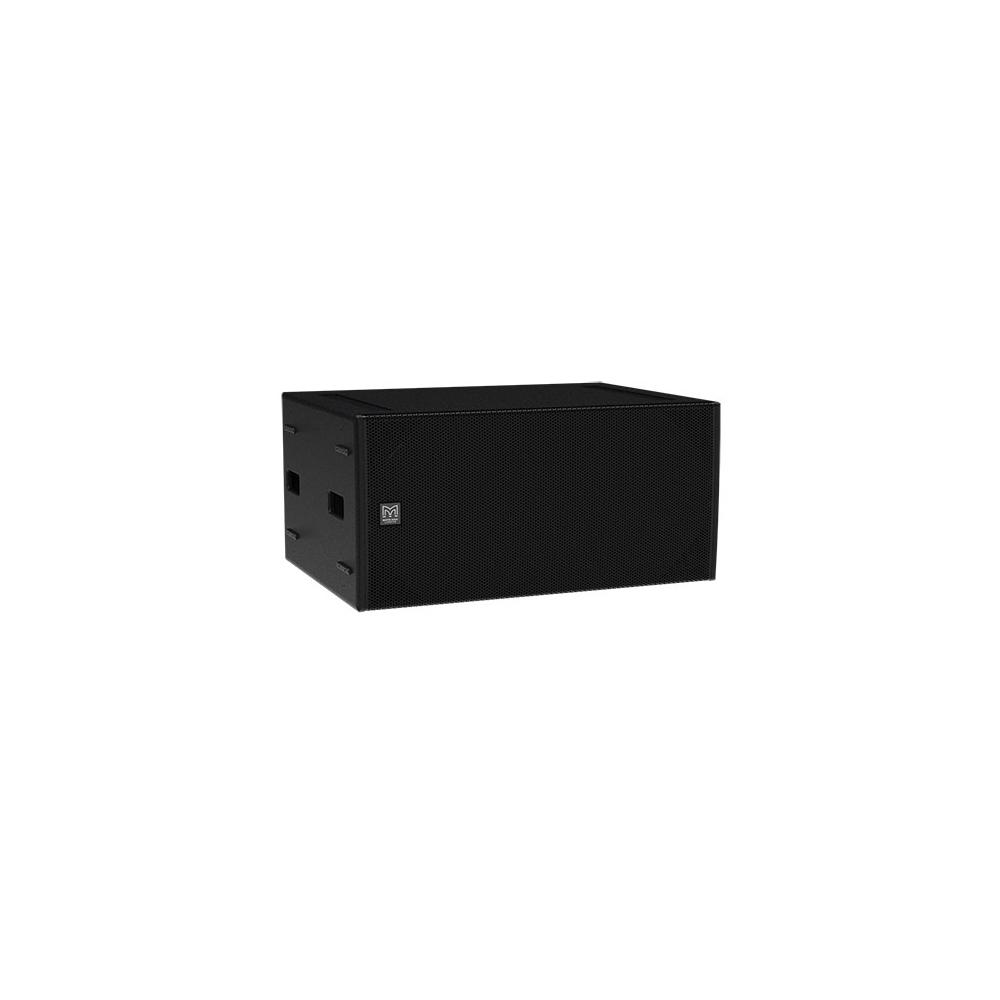

Martin Audio SX215
Direct Radiating
15” Dual Driver Subwoofer
The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long-excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels.
Description
Finished in hardwearing textured paint, the SX215 incorporates threaded inserts for eyebolt suspension of a single enclosure, while an M20 threaded plate facilitates pole-mounting of Martin Audio full-range enclosures. Four ergonomic handles assist handling and installation, and the drivers are protected by a coated steel grille with an acoustically transparent fabric backing.
The SX215 can be used singly, or stacked using locating skids and mating channels at the base and top surface of each enclosure. Cardioid operation can be achieved by arranging the SX215 in forward and rear-facing pairs, with each enclosure powered individually in conjunction with dedicated DSP presets.
The SX215 is available in black and as standard is suppled without castors which are available as an accessory pack.
The optional connector cover makes the SX215 weather resistant and suitable for outdoor usage.
SX215 Features
- Dual-driver, direct radiating subwoofer
- Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones
- Very high output capability
- Plywood enclosure with flying inserts
- Large ports for reduced air noise
Resources & Downloads
Data sheets, manuals and resources for the SX215
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Dual Driver, Direct radiating subwoofer
- CROSSOVER FREQUENCY
- 100Hz
- FREQUENCY RESPONSE 4π
- 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
- DRIVERS
- LF: 15” with 4” Voice coil, Ferrite Motor
- SENSITIVITY
- (1W 1m half space) 103dB
Technical Specifications
- TYPE
- Dual Driver, Direct radiating subwoofer
- CROSSOVER FREQUENCY
- 100Hz
- FREQUENCY RESPONSE 4π
- 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
- DRIVERS
- LF: 15” with 4” Voice coil, Ferrite Motor
- SENSITIVITY
- (1W 1m half space) 103dB
- NOMINAL IMPEDANCE
- 4 Ohms
- RATED POWER
- AES 1600W, PEAK 6400W
- MAXIMUM SPL
- 135 dB continuous, 141 dB peak, 147 dB peak with crest factor 4
- DISPERSION
- Omni-Directional or cardioid when paired
- CONNECTORS
- 2 x NL4
- PIN CONNECTIONS (INPUT)
- 1+/-
- PIN CONNECTIONS (LINK)
- 1+/- and 2+/-
- DIMENSIONS
- (W) 961mm, (H) 463mm, (D) 679mm (807mm with Casters) (W) 37.83ins, (H) 18.23ins, (D) 26.73ins (31.77ins with Casters)
- WEIGHT
- 64kg (141lbs)
- ACCESSORIES
- Pack of four castors (WHEELKIT), Weatherised connector cover (WRKIT), Transit cover (SX215TC), M10 eye bolts (HTKCT06), Wind-up telescopic pole (ASF20071)
Finished in hardwearing textured paint, the SX215 incorporates threaded inserts for eyebolt suspension of a single enclosure, while an M20 threaded plate facilitates pole-mounting of Martin Audio full-range enclosures. Four ergonomic handles assist handling and installation, and the drivers are protected by a coated steel grille with an acoustically transparent fabric backing.
The SX215 can be used singly, or stacked using locating skids and mating channels at the base and top surface of each enclosure. Cardioid operation can be achieved by arranging the SX215 in forward and rear-facing pairs, with each enclosure powered individually in conjunction with dedicated DSP presets.
The SX215 is available in black and as standard is suppled without castors which are available as an accessory pack.
The optional connector cover makes the SX215 weather resistant and suitable for outdoor usage.
- Dual-driver, direct radiating subwoofer
- Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones
- Very high output capability
- Plywood enclosure with flying inserts
- Large ports for reduced air noise
| TYPE | Dual Driver, Direct radiating subwoofer |
| CROSSOVER FREQUENCY | 100Hz |
| FREQUENCY RESPONSE 4π | 45Hz - 100Hz ± 3dB, -10dB @ 36Hz |
| DRIVERS | LF: 15” with 4” Voice coil, Ferrite Motor |
| SENSITIVITY | (1W 1m half space) 103dB |
| NOMINAL IMPEDANCE | 4 Ohms |
| RATED POWER | AES 1600W, PEAK 6400W |
| MAXIMUM SPL | 135 dB continuous, 141 dB peak, 147 dB peak with crest factor 4 |
| DISPERSION | Omni-Directional or cardioid when paired |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 1+/- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| DIMENSIONS | (W) 961mm, (H) 463mm, (D) 679mm (807mm with Casters) (W) 37.83ins, (H) 18.23ins, (D) 26.73ins (31.77ins with Casters) |
| WEIGHT | 64kg (141lbs) |
| ACCESSORIES | Pack of four castors (WHEELKIT), Weatherised connector cover (WRKIT), Transit cover (SX215TC), M10 eye bolts (HTKCT06), Wind-up telescopic pole (ASF20071) |
