Martin Audio SXCF115
Cardioid Flown
Compact 15" Subwoofer
Designed for touring sound and installations, the SXCF115 is a compact, high performance cardioid subwoofer which be flown as part of a WPM or TORUS 8 array, or ground-stacked separately.
Description

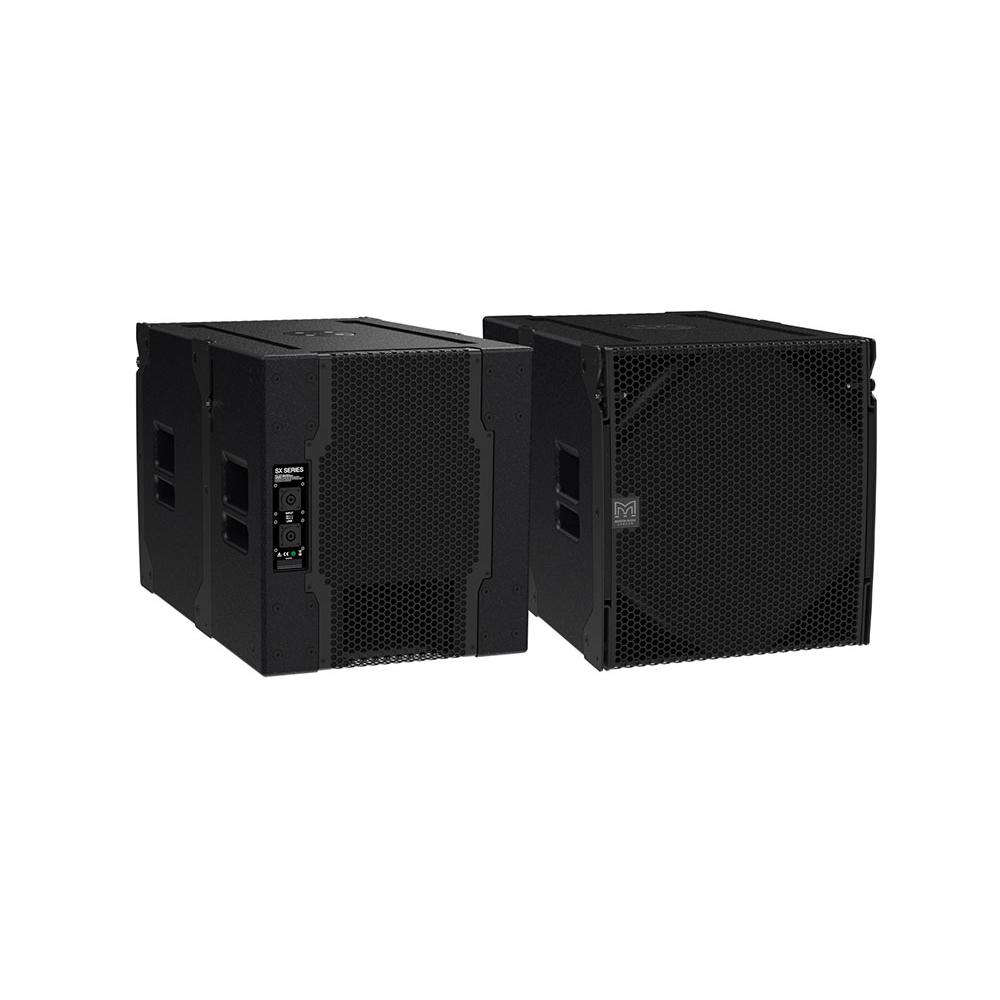

SXCF115 features a 15” (380mm) forward facing driver and a 12” (300mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.
The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room — greatly improving the low frequency response accuracy and impact of the whole system.
In front of the enclosure, the output from the two drivers is additive, delivering 137dB peak, an extra 2dB of output when compared with a conventional 1 x 15” subwoofer.
The SXCF115 integrates perfectly with WPM flown line arrays and TORUS 8 constant curvature arrays, as well an accompaniment for Martin Audio point source systems where low frequency pattern control is required. It can be used singly, stacked or flown, supported by accessories.
The enclosure is constructed from birch ply and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting.
SXCF115 Features
- Compact, cardioid subwoofer
- Front facing 15” (380mm)/4” (100mm) voice coil driver
- Rear facing 12” (300mm)/4” (100mm) voice coil driver
- Cardioid dispersion pattern
- 28dB rear rejection at 75HzHigh output capability
- Tour-grade plywood enclosure
Resources & Downloads
Data sheets, manuals and resources for the SXCF115
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Compact, cardioid subwoofer
- FREQUENCY RESPONSE
- 44Hz – 150Hz ±3dB, -10dB @ 36Hz
- DRIVERS
- 15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone 12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone
- RATED POWER
- 15”: 1000W AES, 4000W peak, 12”: 800W AES, 3200W peak
- SENSITIVITY
- 101dB
Technical Specifications
- TYPE
- Compact, cardioid subwoofer
- FREQUENCY RESPONSE
- 44Hz – 150Hz ±3dB, -10dB @ 36Hz
- DRIVERS
- 15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone 12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone
- RATED POWER
- 15”: 1000W AES, 4000W peak, 12”: 800W AES, 3200W peak
- SENSITIVITY
- 101dB
- MAXIMUM SPL
- 137dB peak
- NOMINAL IMPEDANCE
- 15”: 8 ohms, 12”: 8 ohms
- DISPERSION (-6dB)
- Cardioid
- ENCLOSURE
- Multi-laminate birch ply
- FINISH
- Textured black paint
- PROTECTIVE GRILLE
- Black HEX perforated steel
- CONNECTORS
- 2 x NL4
- PIN CONNECTIONS (INPUT)
- 15”: +1, -1; 12”: +2, -2
- PINS CONNECTIONS (LINK)
- 15”: +1, -1; 12”: +2, -2
- FITTINGS
- Two skids on base, with mating channels on top, M20 top-mounted thread plate for pole mounting, Two bar handles on each side, 16 x M8 inserts for optional castors
- DIMENSIONS (INCL SKIDS)
- (W) 500mm x (H) 552mm x (D) 810mm (938mm incl castors) (W) 19.69in x (H) 21.71in x (D) 31.90in (36.94in incl castors)
- WEIGHT
- 61.5Kg (136lbs), 65Kg (143lbs) incl castors
SXCF115 features a 15” (380mm) forward facing driver and a 12” (300mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.
The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room — greatly improving the low frequency response accuracy and impact of the whole system.
In front of the enclosure, the output from the two drivers is additive, delivering 137dB peak, an extra 2dB of output when compared with a conventional 1 x 15” subwoofer.
The SXCF115 integrates perfectly with WPM flown line arrays and TORUS 8 constant curvature arrays, as well an accompaniment for Martin Audio point source systems where low frequency pattern control is required. It can be used singly, stacked or flown, supported by accessories.
The enclosure is constructed from birch ply and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting.
- Compact, cardioid subwoofer
- Front facing 15” (380mm)/4” (100mm) voice coil driver
- Rear facing 12” (300mm)/4” (100mm) voice coil driver
- Cardioid dispersion pattern
- 28dB rear rejection at 75HzHigh output capability
- Tour-grade plywood enclosure
| TYPE | Compact, cardioid subwoofer |
| FREQUENCY RESPONSE | 44Hz – 150Hz ±3dB, -10dB @ 36Hz |
| DRIVERS | 15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone 12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone |
| RATED POWER | 15”: 1000W AES, 4000W peak, 12”: 800W AES, 3200W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL | 137dB peak |
| NOMINAL IMPEDANCE | 15”: 8 ohms, 12”: 8 ohms |
| DISPERSION (-6dB) | Cardioid |
| ENCLOSURE | Multi-laminate birch ply |
| FINISH | Textured black paint |
| PROTECTIVE GRILLE | Black HEX perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 15”: +1, -1; 12”: +2, -2 |
| PINS CONNECTIONS (LINK) | 15”: +1, -1; 12”: +2, -2 |
| FITTINGS | Two skids on base, with mating channels on top, M20 top-mounted thread plate for pole mounting, Two bar handles on each side, 16 x M8 inserts for optional castors |
| DIMENSIONS (INCL SKIDS) | (W) 500mm x (H) 552mm x (D) 810mm (938mm incl castors) (W) 19.69in x (H) 21.71in x (D) 31.90in (36.94in incl castors) |
| WEIGHT | 61.5Kg (136lbs), 65Kg (143lbs) incl castors |
