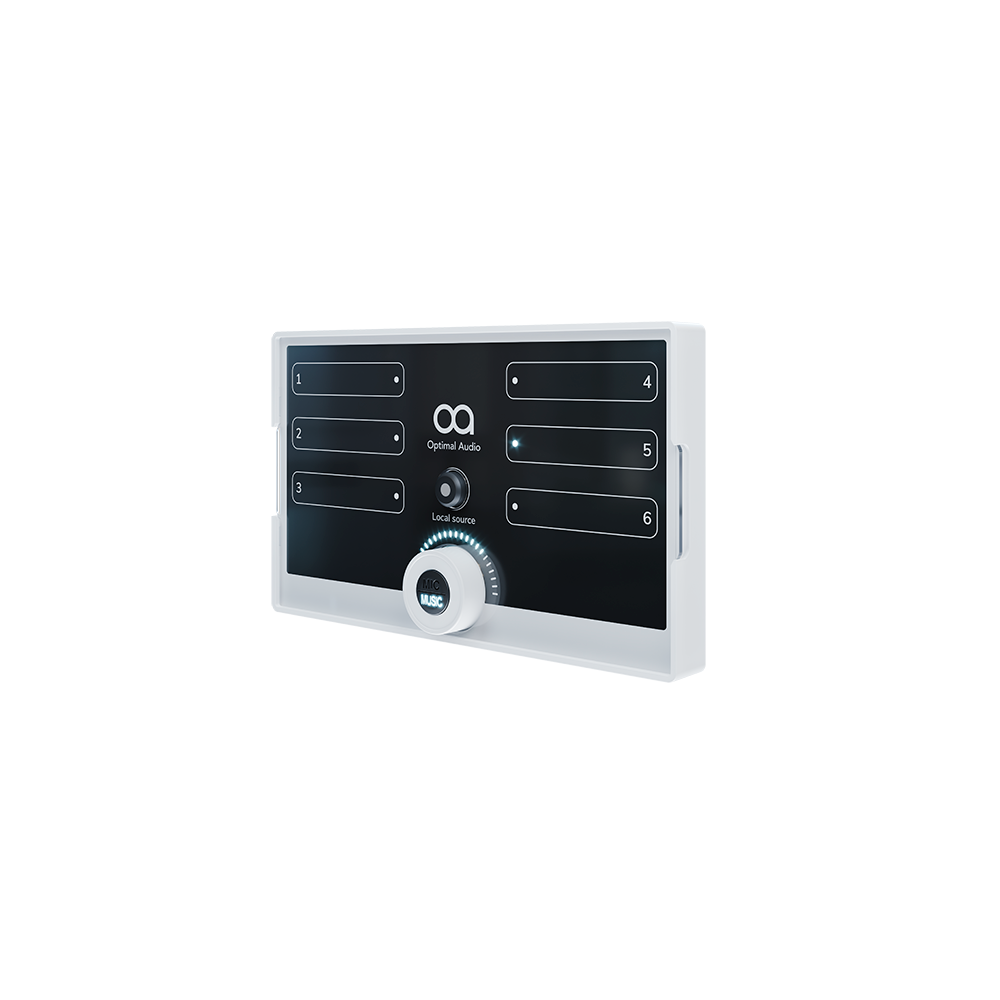

Optimal Audio ZonePad 1
Single zone wall controller
The ZonePad 1 is a wall-mounted controller designed for simple and intuitive control of a single zone within an Optimal Audio system. It provides users with easy access to essential audio functions in that specific zone.
Description
ZonePad 1 is an elegant wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.
It gives all users the confidence and access they need to operate the system and features a clean, slick intuitive touch interface.
ZonePad 1 enables selection and volume control of playback sources and features a local microphone and mono line input.
ZonePad 1 Features
- Remote control wall panel for control of an individual zone
- Contemporary design fits in with any décor
- Intuitive layout with touch sensitive controls
- Easily configured to suit your venue
- Includes one local mic and one mono music input
- Easy access to everyday functions
- Very competitive pricing
Applications for the ZonePad 1
Resources & Downloads
Data sheets, manuals and resources for the ZonePad 1
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Single zone wall controller with local mic and line inputs
- LOCAL MIC INPUT
- 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz
- LOCAL MUSIC INPUT
- 1 x mono
- MAXIMUM DISTANCE (CAT5)
- 300m
- CONNECTION
- RJ 45
Technical Specifications
- TYPE
- Single zone wall controller with local mic and line inputs
- LOCAL MIC INPUT
- 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz
- LOCAL MUSIC INPUT
- 1 x mono
- MAXIMUM DISTANCE (CAT5)
- 300m
- CONNECTION
- RJ 45
- DATA PROTOCOL
- Optimal Audio proprietary over CAT 5
- CASE MATERIAL
- Zinc plated steel, ABS
- LENS MATERIAL
- Clear acrylic
- BACK BOX
- 2-gang UK/EURO 20mm deep back box, or 3-gang US, with the use of the US ZonePad adapter plate
- DIMENSIONS
- (W) 146mm x (H) 86.2mm x (D) 39.3mm (W) 5.75” x (H) 3.39” x (D) 1.55”
- WEIGHT
- 0.35kg (0.8lbs
ZonePad 1 is an elegant wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.
It gives all users the confidence and access they need to operate the system and features a clean, slick intuitive touch interface.
ZonePad 1 enables selection and volume control of playback sources and features a local microphone and mono line input.
- Remote control wall panel for control of an individual zone
- Contemporary design fits in with any décor
- Intuitive layout with touch sensitive controls
- Easily configured to suit your venue
- Includes one local mic and one mono music input
- Easy access to everyday functions
- Very competitive pricing
| TYPE | Single zone wall controller with local mic and line inputs |
| LOCAL MIC INPUT | 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz |
| LOCAL MUSIC INPUT | 1 x mono |
| MAXIMUM DISTANCE (CAT5) | 300m |
| CONNECTION | RJ 45 |
| DATA PROTOCOL | Optimal Audio proprietary over CAT 5 |
| CASE MATERIAL | Zinc plated steel, ABS |
| LENS MATERIAL | Clear acrylic |
| BACK BOX | 2-gang UK/EURO 20mm deep back box, or 3-gang US, with the use of the US ZonePad adapter plate |
| DIMENSIONS | (W) 146mm x (H) 86.2mm x (D) 39.3mm (W) 5.75” x (H) 3.39” x (D) 1.55” |
| WEIGHT | 0.35kg (0.8lbs |
