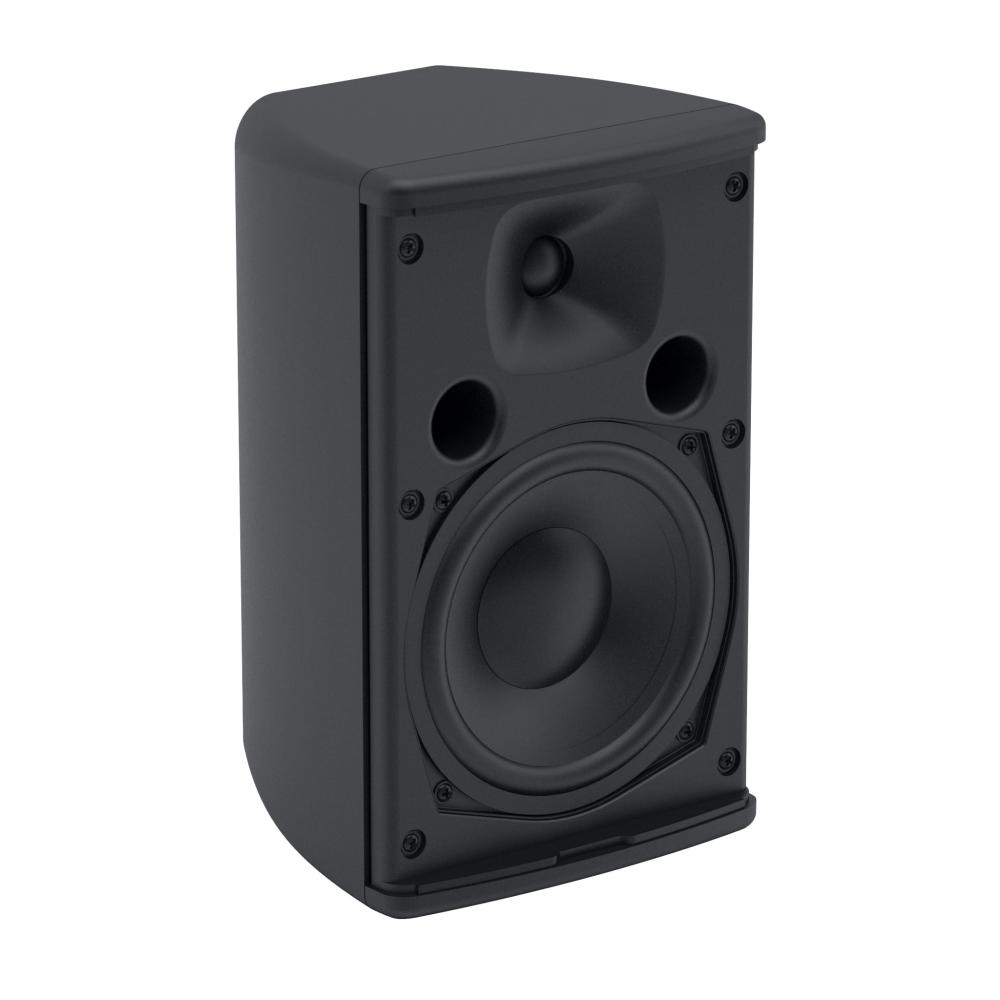

Martin Audio Adorn A55
Two-Way 5.25" On-Wall System
Compact
Description
The A55 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.
Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.
With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2004, thereby maximising efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.
Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. In addition, for general outdoor use the cabinet only requires the additional waterproof connector cover.
The VIA2004 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.
The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.
Adorn A55 Features
- Contemporary, unobtrusive design
- High output capability
- High fidelity sound
- Low and high-frequency overload protection
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
- 5-year warranty
Resources & Downloads
Data sheets, manuals and resources for the Adorn A55
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Ultra-Compact passive two-way system, front ported bass reflex
- FREQUENCY RESPONSE
- 90Hz-17kHz ± 3dB, -10dB @ 65
- DRIVERS
- LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- RATED POWER
- 50W AES, 200W peak
- RECOMMENDED AMPLIFIER
- VIA2004
Technical Specifications
- TYPE
- Ultra-Compact passive two-way system, front ported bass reflex
- FREQUENCY RESPONSE
- 90Hz-17kHz ± 3dB, -10dB @ 65
- DRIVERS
- LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- RATED POWER
- 50W AES, 200W peak
- RECOMMENDED AMPLIFIER
- VIA2004
- SENSITIVITY
- 90dB/1W/1m
- MAXIMUM SPL
- 113dB peak
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 110° H x 80° V
- CROSSOVER
- 3.5kHz passive (LF and HF auto-resetting fuses)
- RECOMMENDED HIGH-PASS FILTER
- 60Hz 24dB/oct
- ENCLOSURE
- ABS, UL 94V-0 rated
- FINISH
- Black or white
- GRILLE
- Perforated steel
- CONNECTORS
- Push terminals
- FITTINGS
- Wall bracket included
- DIMENSIONS EXCL. BRACKET
- (W) 152mm x (H) 245mm x (D) 140mm (W) 6in x (H) 9.6in x (D) 5.5in
- WEIGHT
- 2.21kg (4.9lbs)
- ACCESSORIES
- Waterproof connector cover
The A55 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.
Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.
With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2004, thereby maximising efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.
Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. In addition, for general outdoor use the cabinet only requires the additional waterproof connector cover.
The VIA2004 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.
The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.
- Contemporary, unobtrusive design
- High output capability
- High fidelity sound
- Low and high-frequency overload protection
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
- 5-year warranty
| TYPE | Ultra-Compact passive two-way system, front ported bass reflex |
| FREQUENCY RESPONSE | 90Hz-17kHz ± 3dB, -10dB @ 65 |
| DRIVERS | LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor |
| RATED POWER | 50W AES, 200W peak |
| RECOMMENDED AMPLIFIER | VIA2004 |
| SENSITIVITY | 90dB/1W/1m |
| MAXIMUM SPL | 113dB peak |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 110° H x 80° V |
| CROSSOVER | 3.5kHz passive (LF and HF auto-resetting fuses) |
| RECOMMENDED HIGH-PASS FILTER | 60Hz 24dB/oct |
| ENCLOSURE | ABS, UL 94V-0 rated |
| FINISH | Black or white |
| GRILLE | Perforated steel |
| CONNECTORS | Push terminals |
| FITTINGS | Wall bracket included |
| DIMENSIONS EXCL. BRACKET | (W) 152mm x (H) 245mm x (D) 140mm (W) 6in x (H) 9.6in x (D) 5.5in |
| WEIGHT | 2.21kg (4.9lbs) |
| ACCESSORIES | Waterproof connector cover |
