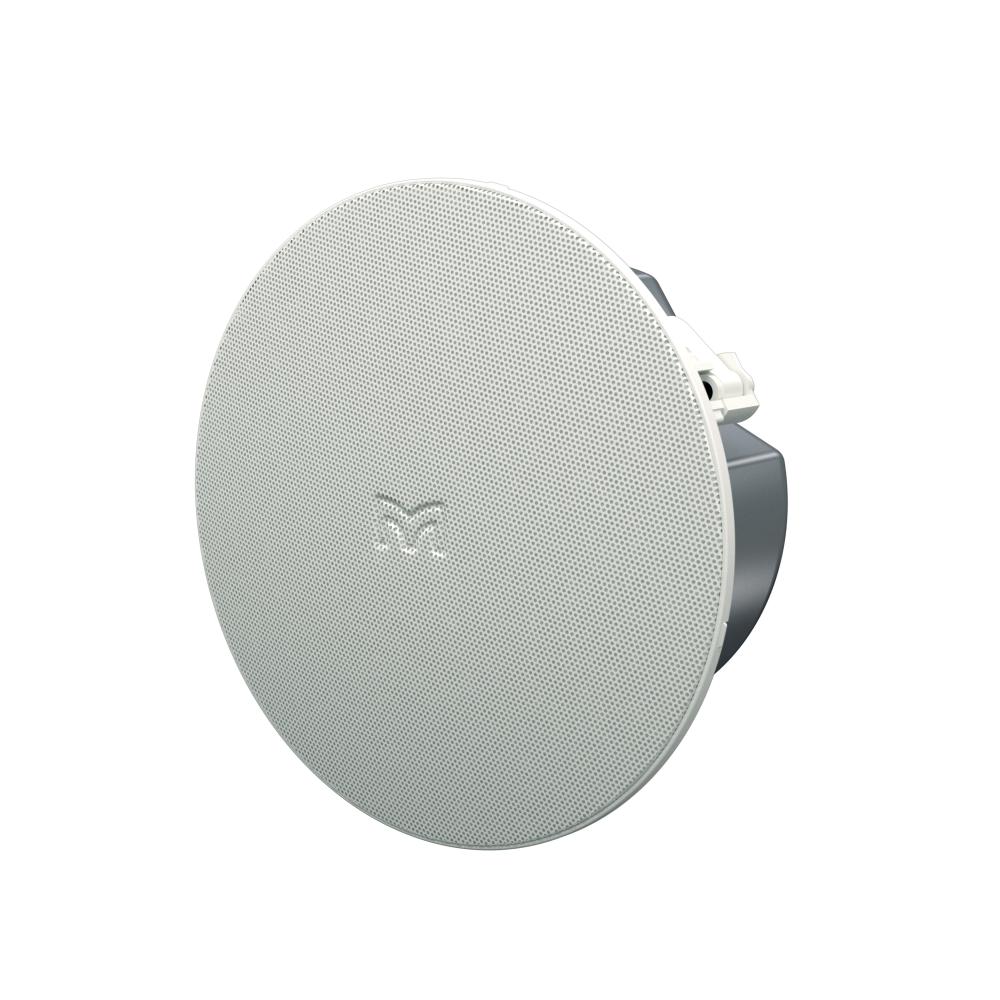

Martin Audio Adorn ACS-40TS – Two-Way 4" Ceiling Speaker

The ACS-40TS brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants.

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk- dome tweeter, the ACS-40TS produces 108dB peak output at 1 metre and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported design delivers strong bass that extends down to 73 Hz.

The very wide 180° conical coverage of the ACS-40TS makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage — leading to a reduction in installation cost. It features a shallow backcan for installation in ceilings with a minimum cavity depth.

It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch accessible behind the powder-coated, perforated steel grille. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high-frequency sections are individually against overload by auto-resetting thermal fuses.

The grille is bezel-less for a clean look, its bayonet fitting is easy to remove without the use of tools and finished in white (RAL9016) to match ADORN on-wall loudspeakers and may also be painted to blend with any décor.

• High performance two-way ceiling speaker
• 4” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
• Very wide 180° conical coverage pattern reduces speaker count required for even coverage
• 70V/100V multitap line transformer or 16-ohm low-impedance operation
• Low and high-frequency overload protection
• UL94V-0 rated baffle with zinc-plated steel backcan
• Quick release, bezel-less grille
• Tile rails and C-ring included
• 5-year warranty
