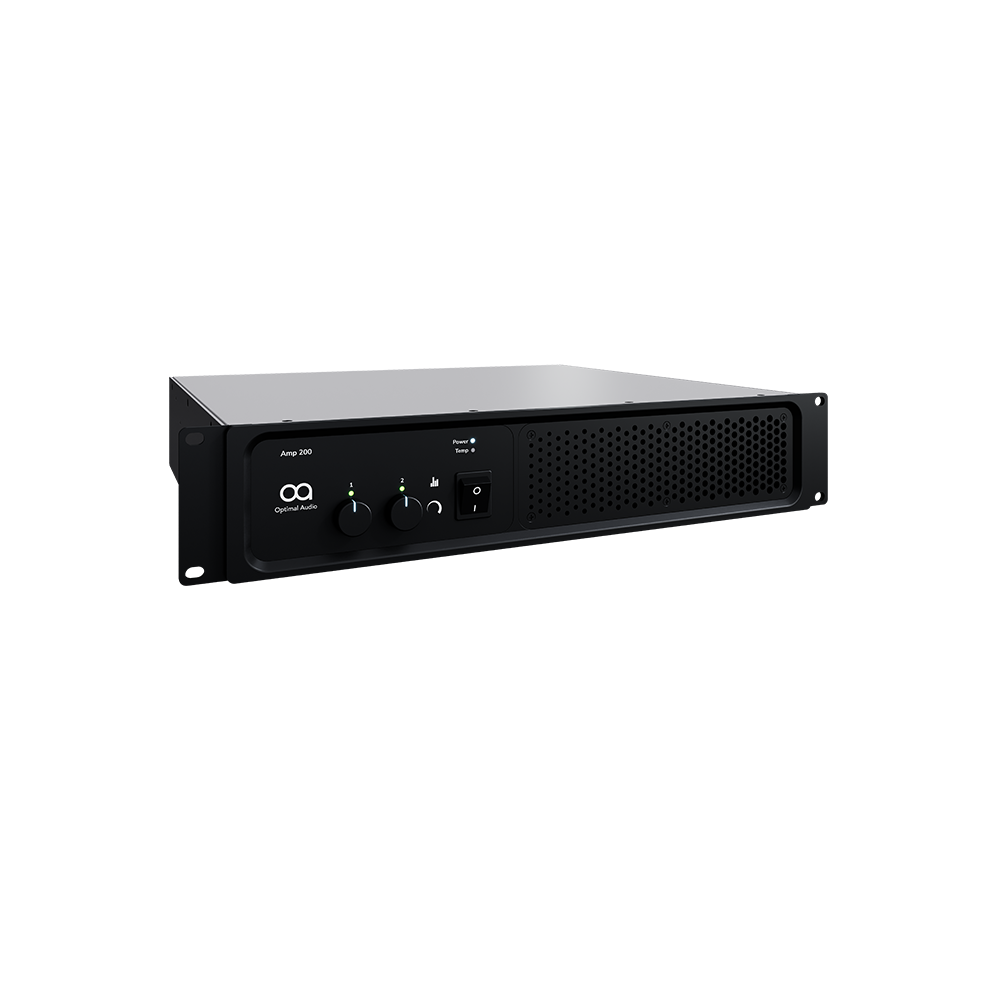

Optimal Audio Amp 200
2 x 700W performance power amplifier
High-Power
The Optimal Audio Amp 200 is a high-performance 2-channel power amplifier, delivering up to 700W per channel for demanding commercial audio installations. Featuring a robust Class A/B design, it offers flexible configuration with stereo, bridge, and parallel modes, along with versatile XLR and jack inputs. Designed to integrate seamlessly with Optimal Audio Zone controllers, the Amp 200 ensures powerful, reliable, and high-quality sound across large-scale venues
Description
Amp 200 is a performance power amplifier specifically designed to power Cuboid and Sub loudspeakers in the Optimal Audio eco-system.
Featuring a compact and rugged 2U design, the front panel follows Optimal Audio’s intuitive approach, whilst providing front panel status monitoring for each amplifier channel via indicator LEDs.
The Amp 200 has flexible input connectors featuring two balanced XLR / 1/4” Jack ‘Combi’ line input connectors and features speakON® or binding post for outputs. Amp 200 can be easily configured for a variety of install applications and can be run in Stereo, Bridge or Parallel mode, selectable by a switch on the rear panel of the unit.
When combined with a Zone processor, Amp 200 reaches its full potential by providing a full suite of Optimal Audio loudspeaker presets, limiters, and much more, easily configurable via Zone's onboard WebApp.
Amp 200 Features
- Reliable, high power Class A/B design
- 700 watts per channel into 4Ω
- Combine with Zone processor for maximum performance
- Stereo, Bridge and Parallel modes
- Available in 120v 60Hz or 230v 50/60Hz models
Applications for the Amp 200
Resources & Downloads
Data sheets, manuals and resources for the Amp 200
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- CLASS AB power amplifier
- POWER OUTPUT (4Ω-16Ω)
- 4Ω: 700W / 8Ω: 400W / 8Ω Bridged: 1400W
- COOLING
- Force air cooling with fan
- ANALOGUE IN/LINK
- Jack/XLR combo inputs
- ANALOGUE INPUT IMPEDANCE
- 7.5kOhms unbalanced, 15kOhms balanced
Technical Specifications
- TYPE
- CLASS AB power amplifier
- POWER OUTPUT (4Ω-16Ω)
- 4Ω: 700W / 8Ω: 400W / 8Ω Bridged: 1400W
- COOLING
- Force air cooling with fan
- ANALOGUE IN/LINK
- Jack/XLR combo inputs
- ANALOGUE INPUT IMPEDANCE
- 7.5kOhms unbalanced, 15kOhms balanced
- MAXIMUM ANALOGUE INPUT LEVEL
- +20dBu
- AMPLIFIER OUTPUTS
- Speakon / 4mm binding posts
- SIGNAL TO NOISE RATIO
- 104dB
- FREQUENCY RESPONSE
- 20-20k, +0, -0.5dB
- TOTAL HARMONIC DISTORTION
- <0.03% @ 1W
- SLEW RATE
- 9.31V/us, 8 ohm load
- DAMPING FACTOR
- >400, 8ohm load
- MAINS POWER INPUT
- 120V, 230V variants
- MAINS CONNECTOR
- IEC
- DIMENSIONS
- (W) 482mm x (H) 88mm x (D) 426mm (W) 18.97” x (H) 3.45” x (D) 16.77”
- WEIGHT
- 17.06kg (37.61lbs)
- ACCESSORIES
- Rear rack support
Amp 200 is a performance power amplifier specifically designed to power Cuboid and Sub loudspeakers in the Optimal Audio eco-system.
Featuring a compact and rugged 2U design, the front panel follows Optimal Audio’s intuitive approach, whilst providing front panel status monitoring for each amplifier channel via indicator LEDs.
The Amp 200 has flexible input connectors featuring two balanced XLR / 1/4” Jack ‘Combi’ line input connectors and features speakON® or binding post for outputs. Amp 200 can be easily configured for a variety of install applications and can be run in Stereo, Bridge or Parallel mode, selectable by a switch on the rear panel of the unit.
When combined with a Zone processor, Amp 200 reaches its full potential by providing a full suite of Optimal Audio loudspeaker presets, limiters, and much more, easily configurable via Zone's onboard WebApp.
- Reliable, high power Class A/B design
- 700 watts per channel into 4Ω
- Combine with Zone processor for maximum performance
- Stereo, Bridge and Parallel modes
- Available in 120v 60Hz or 230v 50/60Hz models
| TYPE | CLASS AB power amplifier |
| POWER OUTPUT (4Ω-16Ω) | 4Ω: 700W / 8Ω: 400W / 8Ω Bridged: 1400W |
| COOLING | Force air cooling with fan |
| ANALOGUE IN/LINK | Jack/XLR combo inputs |
| ANALOGUE INPUT IMPEDANCE | 7.5kOhms unbalanced, 15kOhms balanced |
| MAXIMUM ANALOGUE INPUT LEVEL | +20dBu |
| AMPLIFIER OUTPUTS | Speakon / 4mm binding posts |
| SIGNAL TO NOISE RATIO | 104dB |
| FREQUENCY RESPONSE | 20-20k, +0, -0.5dB |
| TOTAL HARMONIC DISTORTION | <0.03% @ 1W |
| SLEW RATE | 9.31V/us, 8 ohm load |
| DAMPING FACTOR | >400, 8ohm load |
| MAINS POWER INPUT | 120V, 230V variants |
| MAINS CONNECTOR | IEC |
| DIMENSIONS | (W) 482mm x (H) 88mm x (D) 426mm (W) 18.97” x (H) 3.45” x (D) 16.77” |
| WEIGHT | 17.06kg (37.61lbs) |
| ACCESSORIES | Rear rack support |
