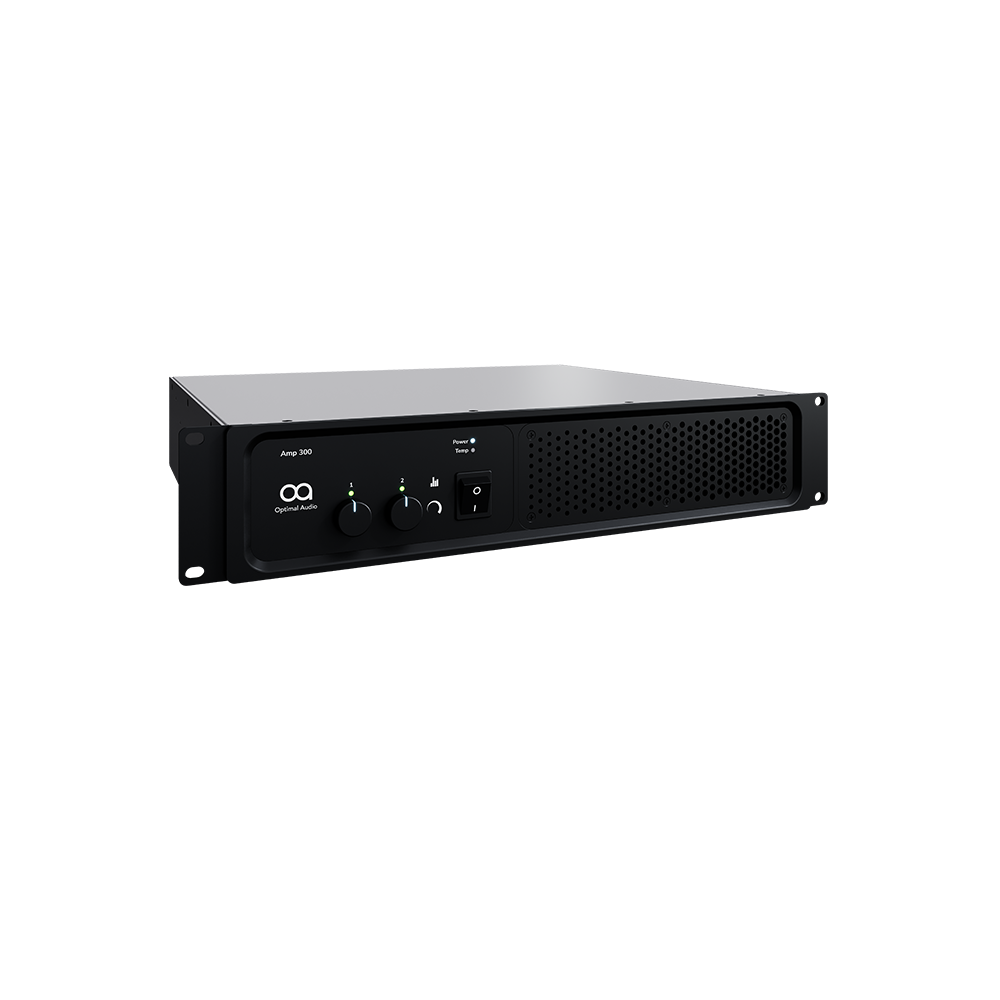

Optimal Audio Amp 300
2 x 1350W performance power amplifier
High-Power
The Optimal Audio Amp 300 is a high-power 2-channel performance amplifier, delivering up to 1350W per channel for demanding commercial audio installations. Built with a reliable Class A/B design, it offers flexible configuration with stereo, bridge, and parallel modes, along with versatile XLR and jack inputs. Designed to integrate seamlessly with Optimal Audio Zone controllers, the Amp 300 provides exceptional power, clarity, and control for large-scale venues and professional sound systems.
Description
Amp 300 is a performance power amplifier specifically designed to power Cuboid and Sub loudspeakers in the Optimal Audio eco-system.
Featuring a compact and rugged 2U design, the front panel follows Optimal Audio’s intuitive approach, whilst providing front panel status monitoring for each amplifier channel via indicator LEDs.
The Amp 300 has flexible input connectors featuring two balanced XLR / 1/4” Jack ‘Combi’ line input connectors and features XLR or binding post for outputs. Amp 300 can be easily configured for a variety of install applications and can be run in Stereo, Bridge or Parallel mode, selectable by a switch on the rear panel of the unit.
When combined with a Zone processor, Amp 300 reaches its full potential by providing a full suite of Optimal Audio loudspeaker presets, limiters, and much more, easily configurable via Zone's onboard WebApp.
Amp 300 Features
- Reliable, high power Class A/B design
- 1350 watts per channel into 4Ω
- Combine with Zone processor for maximum performance
- Stereo, Bridge and Parallel modes
- Available in 120v 60Hz or 230v 50/60Hz models
Applications for the Amp 300
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- CLASS AB power amplifier
- POWER OUTPUT (4Ω-16Ω)
- 4Ω: 1350W / 8Ω: 800W / 8Ω Bridged: 2700W
- COOLING
- Force air cooling with fan
- ANALOGUE IN/LINK
- Jack/XLR combo inputs
- ANALOGUE INPUT IMPEDANCE
- 7.5kOhms unbalanced, 15kOhms balanced
Technical Specifications
- TYPE
- CLASS AB power amplifier
- POWER OUTPUT (4Ω-16Ω)
- 4Ω: 1350W / 8Ω: 800W / 8Ω Bridged: 2700W
- COOLING
- Force air cooling with fan
- ANALOGUE IN/LINK
- Jack/XLR combo inputs
- ANALOGUE INPUT IMPEDANCE
- 7.5kOhms unbalanced, 15kOhms balanced
- MAXIMUM ANALOGUE INPUT LEVEL
- +20dBu
- AMPLIFIER OUTPUTS
- Speakon / 4mm binding posts
- SIGNAL TO NOISE RATIO
- 107dB
- FREQUENCY RESPONSE
- 20-20k, +0, -0.5dB
- TOTAL HARMONIC DISTORTION
- <0.03% @ 1W
- SLEW RATE
- 9.31V/us, 8 ohm load
- DAMPING FACTOR
- >400, 8ohm load
- MAINS POWER INPUT
- 120V, 230V variants
- MAINS CONNECTOR
- IEC
- DIMENSIONS
- (W) 482mm x (H) 88mm x (D) 426mm (W) 18.97” x (H) 3.45” x (D) 16.77”
- WEIGHT
- 20.09kg (44.29lbs)
- ACCESSORIES
- Rear rack support
Amp 300 is a performance power amplifier specifically designed to power Cuboid and Sub loudspeakers in the Optimal Audio eco-system.
Featuring a compact and rugged 2U design, the front panel follows Optimal Audio’s intuitive approach, whilst providing front panel status monitoring for each amplifier channel via indicator LEDs.
The Amp 300 has flexible input connectors featuring two balanced XLR / 1/4” Jack ‘Combi’ line input connectors and features XLR or binding post for outputs. Amp 300 can be easily configured for a variety of install applications and can be run in Stereo, Bridge or Parallel mode, selectable by a switch on the rear panel of the unit.
When combined with a Zone processor, Amp 300 reaches its full potential by providing a full suite of Optimal Audio loudspeaker presets, limiters, and much more, easily configurable via Zone's onboard WebApp.
- Reliable, high power Class A/B design
- 1350 watts per channel into 4Ω
- Combine with Zone processor for maximum performance
- Stereo, Bridge and Parallel modes
- Available in 120v 60Hz or 230v 50/60Hz models
| TYPE | CLASS AB power amplifier |
| POWER OUTPUT (4Ω-16Ω) | 4Ω: 1350W / 8Ω: 800W / 8Ω Bridged: 2700W |
| COOLING | Force air cooling with fan |
| ANALOGUE IN/LINK | Jack/XLR combo inputs |
| ANALOGUE INPUT IMPEDANCE | 7.5kOhms unbalanced, 15kOhms balanced |
| MAXIMUM ANALOGUE INPUT LEVEL | +20dBu |
| AMPLIFIER OUTPUTS | Speakon / 4mm binding posts |
| SIGNAL TO NOISE RATIO | 107dB |
| FREQUENCY RESPONSE | 20-20k, +0, -0.5dB |
| TOTAL HARMONIC DISTORTION | <0.03% @ 1W |
| SLEW RATE | 9.31V/us, 8 ohm load |
| DAMPING FACTOR | >400, 8ohm load |
| MAINS POWER INPUT | 120V, 230V variants |
| MAINS CONNECTOR | IEC |
| DIMENSIONS | (W) 482mm x (H) 88mm x (D) 426mm (W) 18.97” x (H) 3.45” x (D) 16.77” |
| WEIGHT | 20.09kg (44.29lbs) |
| ACCESSORIES | Rear rack support |
