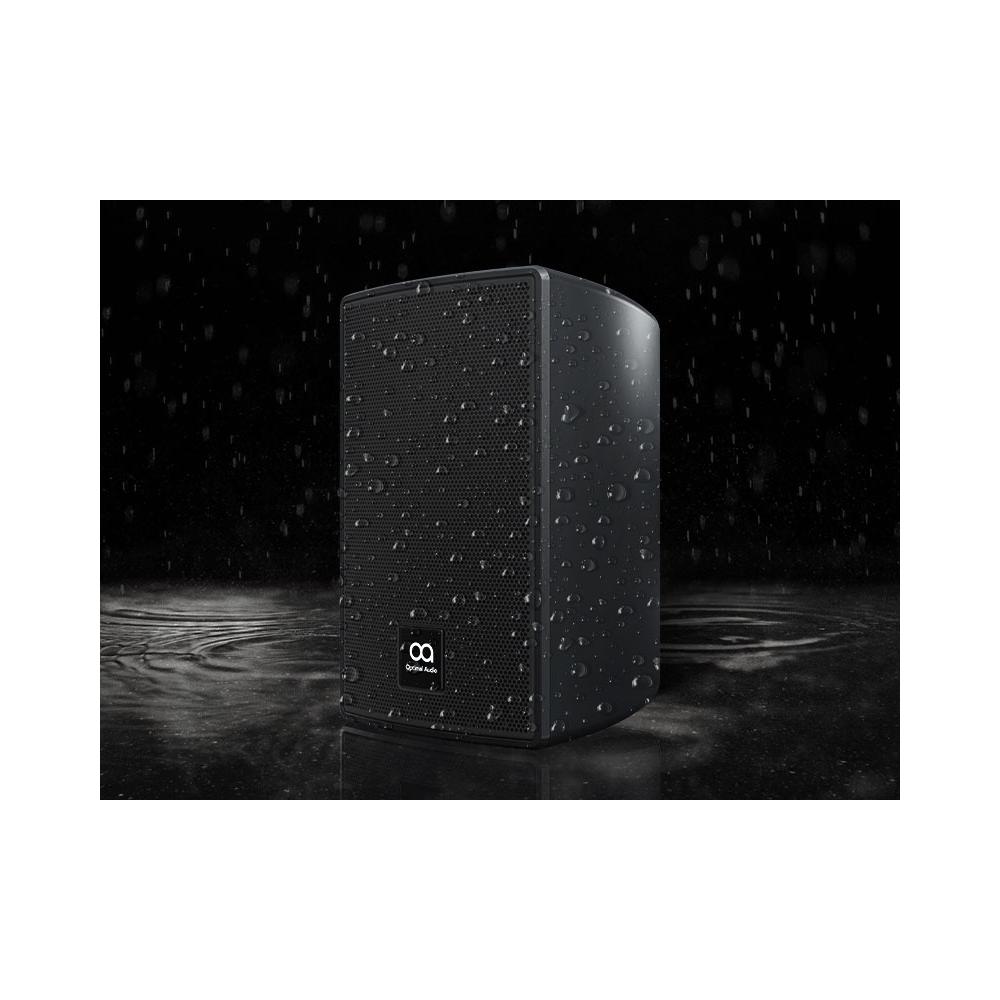

Optimal Audio Cuboid 3TX
Two-Way Passive with Transformer
Full range, 3” loudspeaker
The Optimal Audio Cuboid 3TX is a compact full-range passive loudspeaker with an integrated transformer, designed for use in 70V/100V line systems. Ideal for commercial environments such as retail, hospitality, and offices, it delivers clear, reliable sound with flexible installation and discreet styling for seamless integration.
-large.jpg)
Description
Cuboid 3TX is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 3TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 3TX features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 3TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
For enhanced bass performance, Cuboid 3TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When coupled with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
Cuboid 3TX Features
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 98dB (continuous) 104dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
- 8 ohm or 70/100V line operation
Applications for the Cuboid 3TX
Resources & Downloads
Data sheets, manuals and resources for the Cuboid 3TX
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Two-way, full range, passive 3” loudspeaker with transformer
- FREQUENCY RESPONSE (when used with preset)
- 125Hz - 20kHz +/-3dB, -10dB @ 80Hz
- DRIVERS
- LF: 3.5”(90mm) coated paper, ferrite motor system. HF: 0.5” (12.5mm) PEI Diaphragm neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 30 W (AES) 120W (peak)
Technical Specifications
- TYPE
- Two-way, full range, passive 3” loudspeaker with transformer
- FREQUENCY RESPONSE (when used with preset)
- 125Hz - 20kHz +/-3dB, -10dB @ 80Hz
- DRIVERS
- LF: 3.5”(90mm) coated paper, ferrite motor system. HF: 0.5” (12.5mm) PEI Diaphragm neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 30 W (AES) 120W (peak)
- NOMINAL IMPEDANCE
- 8Ω
- SENSITIVITY (1W/1m)
- 84dB
- MAXIMUM SPL @ 1m
- 98dB (cont) 104dB (peak) @ 8Ω
- CROSSOVER
- 3kHz
- RECOMMENDED HIGH PASS FILTER
- 24dB Per Octave @ 80 Hz
- TRANSFORMER TAPS @ 70v
- 2.5, 3.75, 5, 7.5W
- TRANSFORMER TAPS @ 100v
- 5, 7.5, 10, 15W
- DISPERSION (-6dB)
- 130°H x 120°V
- ENCLOSURE
- ABS
- FINISH
- Paint
- PROTECTIVE GRILLE
- Painted Aluminium
- CONNECTORS
- 4 pin Euroblock
- PIN CONNECTIONS (INPUT)
- Positive and negative in with link out terminals
- FITTINGS
- M4 mounting points for wall bracket
- DIMENSIONS
- (W)120mm x (H)190mm x (D)118mm (W)4.7” x (H)7.5” x (D)4.7”
- WEIGHT
- 1.26kg (2.8lb)
- RECOMMENDED SUB
- Sub 10
- RECOMMENDED AMP
- Zone, SmartAmp
Cuboid 3TX is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 3TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 3TX features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 3TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
For enhanced bass performance, Cuboid 3TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When coupled with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 98dB (continuous) 104dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
- 8 ohm or 70/100V line operation
| TYPE | Two-way, full range, passive 3” loudspeaker with transformer |
| FREQUENCY RESPONSE (when used with preset) | 125Hz - 20kHz +/-3dB, -10dB @ 80Hz |
| DRIVERS | LF: 3.5”(90mm) coated paper, ferrite motor system. HF: 0.5” (12.5mm) PEI Diaphragm neodymium motor system |
| IP RATING | IP54 when used with accessory terminal cover |
| RATED POWER | 30 W (AES) 120W (peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 84dB |
| MAXIMUM SPL @ 1m | 98dB (cont) 104dB (peak) @ 8Ω |
| CROSSOVER | 3kHz |
| RECOMMENDED HIGH PASS FILTER | 24dB Per Octave @ 80 Hz |
| TRANSFORMER TAPS @ 70v | 2.5, 3.75, 5, 7.5W |
| TRANSFORMER TAPS @ 100v | 5, 7.5, 10, 15W |
| DISPERSION (-6dB) | 130°H x 120°V |
| ENCLOSURE | ABS |
| FINISH | Paint |
| PROTECTIVE GRILLE | Painted Aluminium |
| CONNECTORS | 4 pin Euroblock |
| PIN CONNECTIONS (INPUT) | Positive and negative in with link out terminals |
| FITTINGS | M4 mounting points for wall bracket |
| DIMENSIONS | (W)120mm x (H)190mm x (D)118mm (W)4.7” x (H)7.5” x (D)4.7” |
| WEIGHT | 1.26kg (2.8lb) |
| RECOMMENDED SUB | Sub 10 |
| RECOMMENDED AMP | Zone, SmartAmp |
