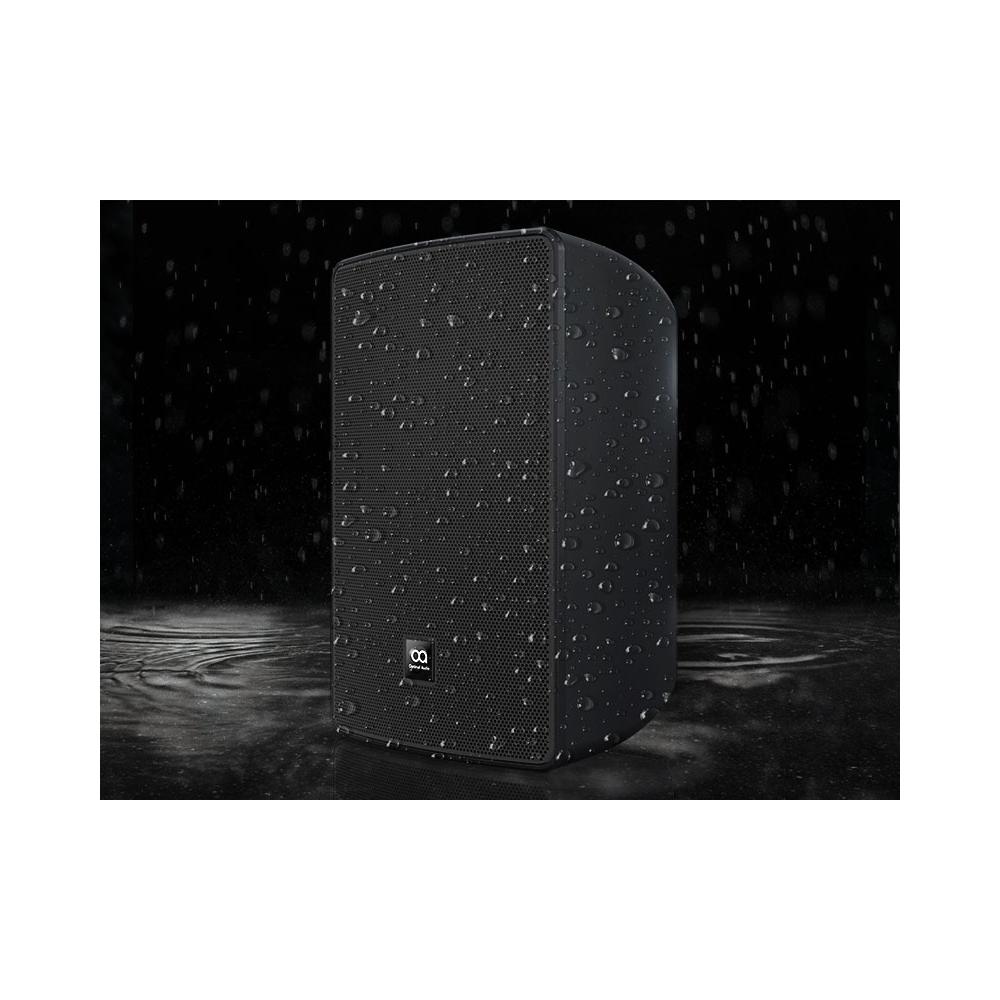

Optimal Audio Cuboid 6
Two-Way Passive
Full-Range 6.5" Loudspeaker
The Optimal Audio Cuboid 6 is a powerful and versatile full-range passive loudspeaker, designed to deliver clear, detailed sound in commercial environments. Ideal for hospitality, retail, and leisure spaces, it provides excellent coverage, flexible installation, and reliable performance for both background music and higher output applications.
Description
Cuboid 6 is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a compact form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
For enhanced bass performance, Cuboid 6 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
Cuboid 6 Features
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 105dB (continuous) 111dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
Applications for the Cuboid 6
Resources & Downloads
Data sheets, manuals and resources for the Cuboid 6
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Two-way, full range, passive 6.5” loudspeaker
- FREQUENCY RESPONSE (when used with preset )
- 90Hz - 20kHz +/-3dB, -10dB @ 70Hz
- DRIVERS
- LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 60 W (AES) 240W (peak)
Technical Specifications
- TYPE
- Two-way, full range, passive 6.5” loudspeaker
- FREQUENCY RESPONSE (when used with preset )
- 90Hz - 20kHz +/-3dB, -10dB @ 70Hz
- DRIVERS
- LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 60 W (AES) 240W (peak)
- NOMINAL IMPEDANCE
- 8Ω
- SENSITIVITY (1W/1m)
- 89dB
- MAXIMUM SPL @ 1m
- 107dB (cont) 113dB (peak) @ 8Ω
- CROSSOVER
- 3.4kHz
- RECOMMENDED HIGH PASS FILTER
- 24dB Per Octave @ 50 Hz
- DISPERSION (-6dB)
- 130°H x 120°V
- ENCLOSURE
- ABS
- FINISH
- Black and White finish
- PROTECTIVE GRILLE
- Painted Aluminium
- CONNECTORS
- 4 pin Euroblock
- PIN CONNECTIONS (INPUT)
- Positive and negative in with link out terminals
- FITTINGS
- M4 mounting points for wall bracket
- DIMENSIONS
- (W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5”
- WEIGHT
- 3.82kg (8.4lb)
- RECOMMENDED SUB
- Sub 10
- RECOMMENDED AMP
- Zone, SmartAmp
Cuboid 6 is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a compact form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
For enhanced bass performance, Cuboid 6 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 105dB (continuous) 111dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
| TYPE | Two-way, full range, passive 6.5” loudspeaker |
| FREQUENCY RESPONSE (when used with preset ) | 90Hz - 20kHz +/-3dB, -10dB @ 70Hz |
| DRIVERS | LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system |
| IP RATING | IP54 when used with accessory terminal cover |
| RATED POWER | 60 W (AES) 240W (peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 89dB |
| MAXIMUM SPL @ 1m | 107dB (cont) 113dB (peak) @ 8Ω |
| CROSSOVER | 3.4kHz |
| RECOMMENDED HIGH PASS FILTER | 24dB Per Octave @ 50 Hz |
| DISPERSION (-6dB) | 130°H x 120°V |
| ENCLOSURE | ABS |
| FINISH | Black and White finish |
| PROTECTIVE GRILLE | Painted Aluminium |
| CONNECTORS | 4 pin Euroblock |
| PIN CONNECTIONS (INPUT) | Positive and negative in with link out terminals |
| FITTINGS | M4 mounting points for wall bracket |
| DIMENSIONS | (W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5” |
| WEIGHT | 3.82kg (8.4lb) |
| RECOMMENDED SUB | Sub 10 |
| RECOMMENDED AMP | Zone, SmartAmp |
