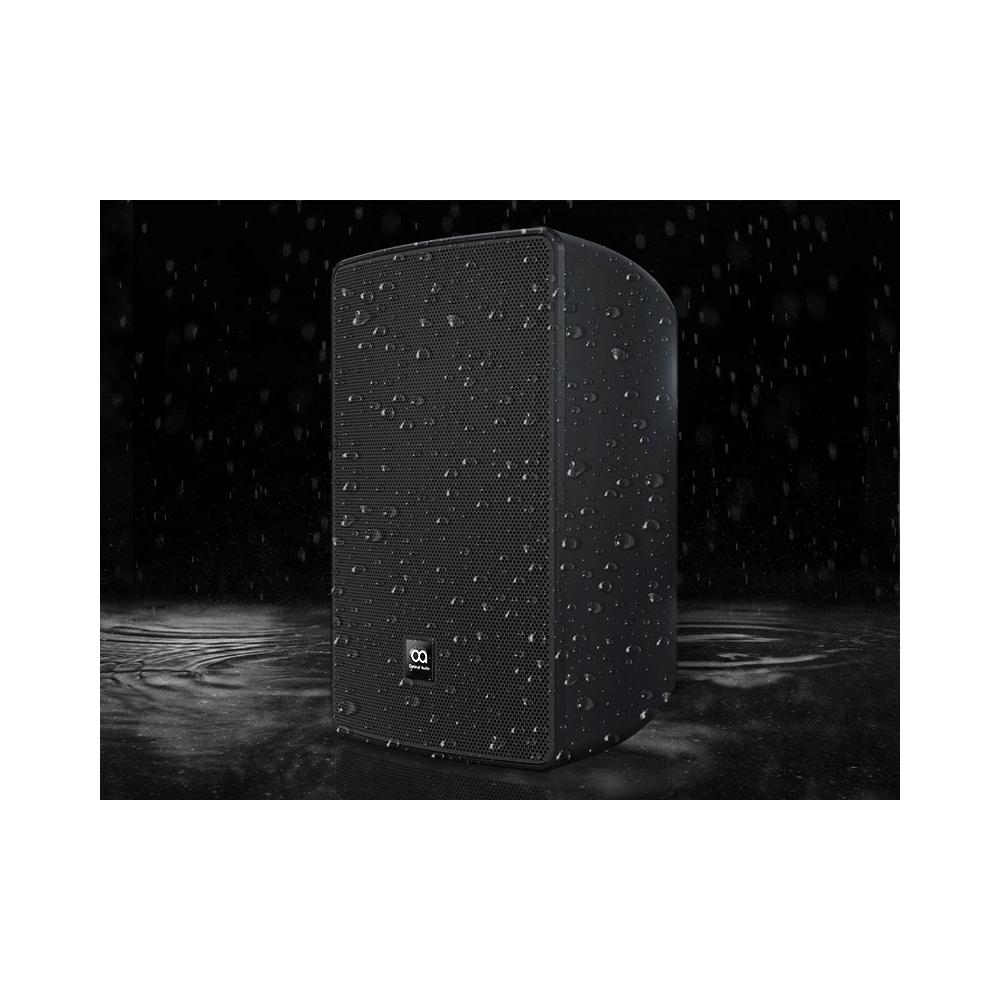

Optimal Audio Cuboid 6TX
Two-Way Passive with Transformer
Full-Range 6.5" Loudspeaker
The Optimal Audio Cuboid 6TX is a versatile full-range passive loudspeaker with an integrated transformer, designed for use in 70V/100V distributed audio systems. Ideal for commercial environments such as hospitality, retail, and leisure spaces, it delivers clear, detailed sound with flexible installation and reliable performance.
Description
Cuboid 6TX is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 6TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6TX features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 6TX has an improved 60w transformer which enables the delivery of premium sound when installed on 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
For enhanced bass performance, Cuboid 6TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When coupled with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
Cuboid 6TX Features
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 107dB (cont) 113dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
- 8 ohm or 70/100V line operation
Applications for the Cuboid 6TX
Resources & Downloads
Data sheets, manuals and resources for the Cuboid 6TX
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Two-way, full range, passive 6.5” loudspeaker with transformer
- FREQUENCY RESPONSE (when used with preset )
- 90Hz - 20kHz +/-3dB, -10dB @ 70Hz
- DRIVERS
- LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 60 W (AES) 240W (peak)
Technical Specifications
- TYPE
- Two-way, full range, passive 6.5” loudspeaker with transformer
- FREQUENCY RESPONSE (when used with preset )
- 90Hz - 20kHz +/-3dB, -10dB @ 70Hz
- DRIVERS
- LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system
- IP RATING
- IP54 when used with accessory terminal cover
- RATED POWER
- 60 W (AES) 240W (peak)
- NOMINAL IMPEDANCE
- 8Ω
- SENSITIVITY (1W/1m)
- 89dB
- MAXIMUM SPL @ 1m
- 107dB (cont) 113dB (peak) @ 8Ω
- CROSSOVER
- 3.4kHz
- RECOMMENDED HIGH PASS FILTER
- 24dB Per Octave @ 50 Hz
- TRANSFORMER TAPS @ 70v
- 3.75, 7.5, 15, 30W
- TRANSFORMER TAPS @ 100v
- 7.5, 15, 30, 60W
- DISPERSION (-6dB)
- 130°H x 120°V
- ENCLOSURE
- ABS
- FINISH
- Black and White finish
- PROTECTIVE GRILLE
- Painted Aluminium
- CONNECTORS
- 4 pin Euroblock
- PIN CONNECTIONS (INPUT)
- Positive and negative in with link out terminals
- FITTINGS
- M4 mounting points for wall bracket
- DIMENSIONS
- (W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5”
- WEIGHT
- 3.82kg (8.4lb)
- RECOMMENDED SUB
- Sub 10
- RECOMMENDED AMP
- Zone, SmartAmp
Cuboid 6TX is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 6TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6TX features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 6TX has an improved 60w transformer which enables the delivery of premium sound when installed on 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
For enhanced bass performance, Cuboid 6TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When coupled with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 107dB (cont) 113dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
- 8 ohm or 70/100V line operation
| TYPE | Two-way, full range, passive 6.5” loudspeaker with transformer |
| FREQUENCY RESPONSE (when used with preset ) | 90Hz - 20kHz +/-3dB, -10dB @ 70Hz |
| DRIVERS | LF: 6.5”(165mm) coated paper, ferrite motor system, HF: 1” (25.4mm) Silk Dome, neodymium motor system |
| IP RATING | IP54 when used with accessory terminal cover |
| RATED POWER | 60 W (AES) 240W (peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 89dB |
| MAXIMUM SPL @ 1m | 107dB (cont) 113dB (peak) @ 8Ω |
| CROSSOVER | 3.4kHz |
| RECOMMENDED HIGH PASS FILTER | 24dB Per Octave @ 50 Hz |
| TRANSFORMER TAPS @ 70v | 3.75, 7.5, 15, 30W |
| TRANSFORMER TAPS @ 100v | 7.5, 15, 30, 60W |
| DISPERSION (-6dB) | 130°H x 120°V |
| ENCLOSURE | ABS |
| FINISH | Black and White finish |
| PROTECTIVE GRILLE | Painted Aluminium |
| CONNECTORS | 4 pin Euroblock |
| PIN CONNECTIONS (INPUT) | Positive and negative in with link out terminals |
| FITTINGS | M4 mounting points for wall bracket |
| DIMENSIONS | (W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5” |
| WEIGHT | 3.82kg (8.4lb) |
| RECOMMENDED SUB | Sub 10 |
| RECOMMENDED AMP | Zone, SmartAmp |
