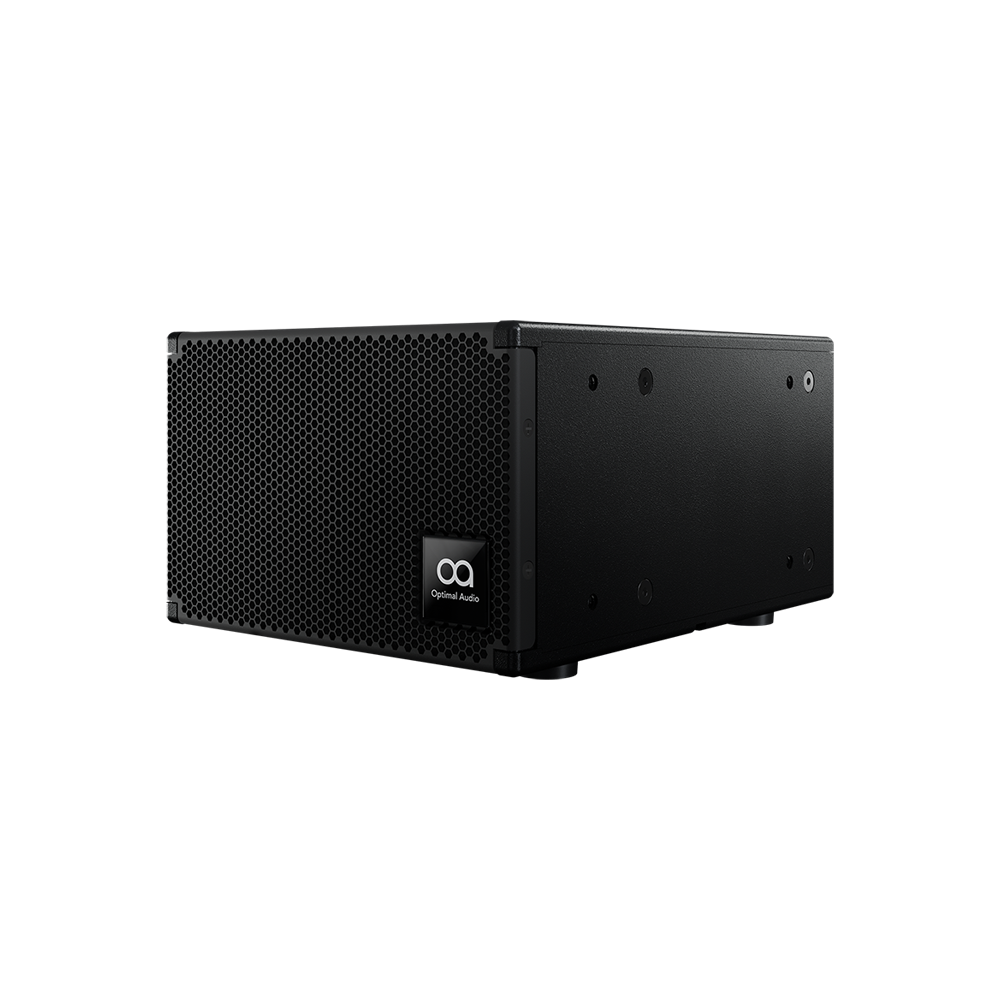

Optimal Audio Sub 6
Sub-bass Loudspeaker
Ultra-Compact 6" Subwoofer
The Optimal Audio Sub 6 is a compact passive subwoofer designed to deliver tight, controlled low-frequency performance in commercial audio systems. Ideal for smaller spaces such as retail, hospitality, and offices, it enhances full-range speakers with added depth and warmth while maintaining a discreet and space-efficient design.
Description
Sub 6 is an ultra-compact, passive 6” subwoofer designed for applications that call for increased impact and low frequency performance from the smaller Cuboid and Up ceiling loudspeakers.
It features a custom designed, 6” driver with a 2.5” voice coil, combined with a generously sized low frequency port to improve musicality. Delivering 250W (AES) of power with a peak SPL of 118dB, achieving 37Hz at –10dB, this is a truly punchy miniature subwoofer.
The integral M8 inserts, recessed cable channels, and alternate rubber feet positions ensure that Sub 6 fits easily, securely and elegantly into any application. Sub 6 is small enough to fit through a standard ceiling tile and be secured with the available Sub Bracket for wall or ceiling mounting.
An impact-resistant perforated steel grille protects the driver, and the Sub 6 enclosure is constructed from MDF and finished in black or white textured paint.
SmartAmp will provide amplification, EQ settings as well as limiters to protect the driver when playing at louder sound levels.
Sub 6 can be driven by a pair of bridged channels on any powered Zone, whilst the onboard WebApp, ensures system set up and end user control is straight forward.
Sub 6 Features
- Ultra-compact size
- Punchy sub-bass extension
- Flexible wall & ceiling mounting options
- Recessed channels for discreet cable management
- Alternate rubber feet positions for install flexibility
Applications for the Sub 6
Resources & Downloads
Data sheets, manuals and resources for the Sub 6
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Sub-bass loudspeaker
- FREQUENCY RESPONSE (with preset)
- 41Hz - 200Hz ± 3dB -10dB @ 37Hz
- DRIVERS
- LF: 6.5” (165mm)
- RATED POWER
- 200W (AES) 800W (peak)
- NOMINAL IMPEDANCE
- 8Ω
Technical Specifications
- TYPE
- Sub-bass loudspeaker
- FREQUENCY RESPONSE (with preset)
- 41Hz - 200Hz ± 3dB -10dB @ 37Hz
- DRIVERS
- LF: 6.5” (165mm)
- RATED POWER
- 200W (AES) 800W (peak)
- NOMINAL IMPEDANCE
- 8Ω
- SENSITIVITY (1W/1m)
- 88dB (Half Space)
- MAXIMUM SPL
- 112dB (cont) 118dB (peak) (Half Space)
- RECOMMENDED AMP
- SmartAmp 30
- ENCLOSURE
- MDF
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Perforated steel
- CONNECTORS
- Euroblock
- FITTINGS
- 16 x M8, inset bolts
- DIMENSIONS
- (W) 200mm x (H) 310mm x (D) 400mm not including feet (12mm) (W) 7.9” x (H) 12.2” x (D) 15.7” not including feet (0.4”)
- WEIGHT
- 11.5Kg (25.3lbs
- ACCESSORIES (available separately)
- Sub Bracket (Pair) M8 Eye Bolt
Sub 6 is an ultra-compact, passive 6” subwoofer designed for applications that call for increased impact and low frequency performance from the smaller Cuboid and Up ceiling loudspeakers.
It features a custom designed, 6” driver with a 2.5” voice coil, combined with a generously sized low frequency port to improve musicality. Delivering 250W (AES) of power with a peak SPL of 118dB, achieving 37Hz at –10dB, this is a truly punchy miniature subwoofer.
The integral M8 inserts, recessed cable channels, and alternate rubber feet positions ensure that Sub 6 fits easily, securely and elegantly into any application. Sub 6 is small enough to fit through a standard ceiling tile and be secured with the available Sub Bracket for wall or ceiling mounting.
An impact-resistant perforated steel grille protects the driver, and the Sub 6 enclosure is constructed from MDF and finished in black or white textured paint.
SmartAmp will provide amplification, EQ settings as well as limiters to protect the driver when playing at louder sound levels.
Sub 6 can be driven by a pair of bridged channels on any powered Zone, whilst the onboard WebApp, ensures system set up and end user control is straight forward.
- Ultra-compact size
- Punchy sub-bass extension
- Flexible wall & ceiling mounting options
- Recessed channels for discreet cable management
- Alternate rubber feet positions for install flexibility
| TYPE | Sub-bass loudspeaker |
| FREQUENCY RESPONSE (with preset) | 41Hz - 200Hz ± 3dB -10dB @ 37Hz |
| DRIVERS | LF: 6.5” (165mm) |
| RATED POWER | 200W (AES) 800W (peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 88dB (Half Space) |
| MAXIMUM SPL | 112dB (cont) 118dB (peak) (Half Space) |
| RECOMMENDED AMP | SmartAmp 30 |
| ENCLOSURE | MDF |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | Euroblock |
| FITTINGS | 16 x M8, inset bolts |
| DIMENSIONS | (W) 200mm x (H) 310mm x (D) 400mm not including feet (12mm) (W) 7.9” x (H) 12.2” x (D) 15.7” not including feet (0.4”) |
| WEIGHT | 11.5Kg (25.3lbs |
| ACCESSORIES (available separately) | Sub Bracket (Pair) M8 Eye Bolt |
