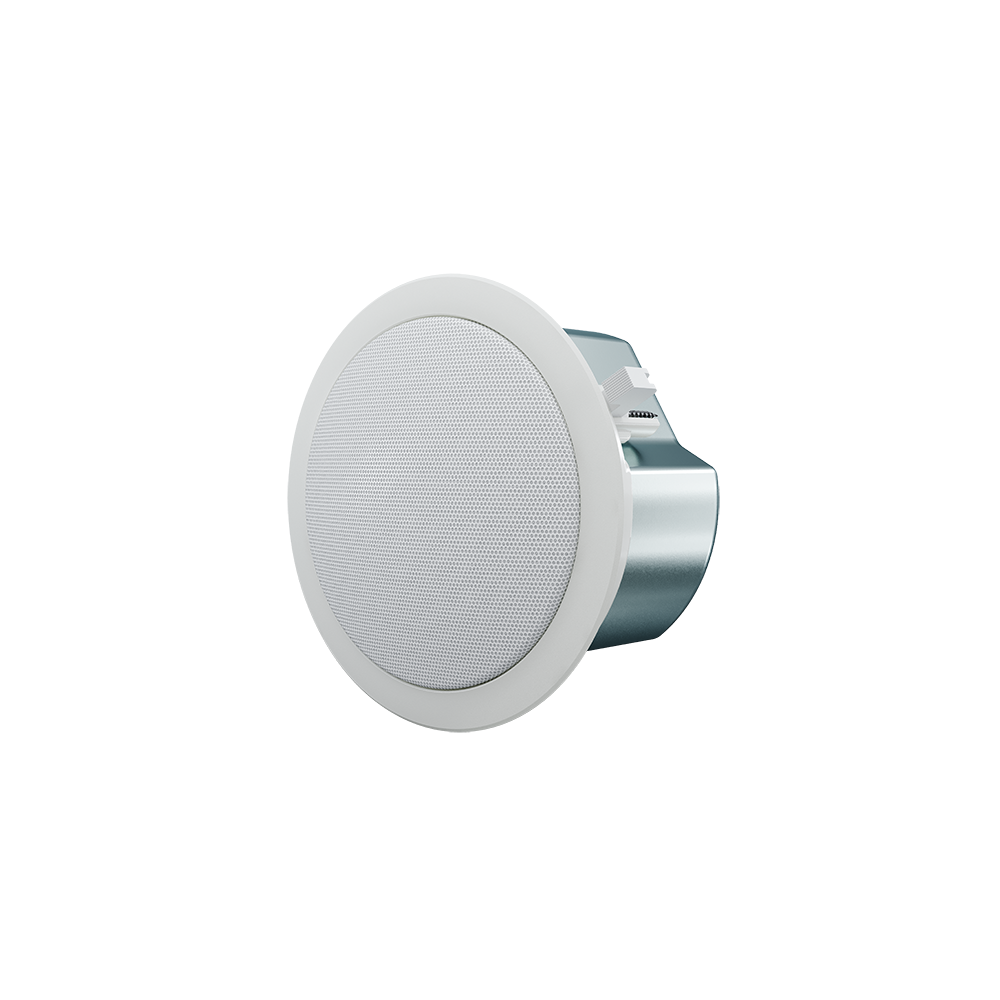

Optimal Audio Up 4S
Two-Way Passive
Full Range, Low Profile 4” ceiling speaker
The Optimal Audio Up 4S is a compact, full-range ceiling speaker designed to deliver clear and balanced audio for both music and speech in commercial environments. Featuring a 4-inch driver and silk dome tweeter, it provides wide, even coverage, making it ideal for small to medium-sized spaces. Its low-profile design with an enclosed backcan allows for easy installation in ceilings with limited depth, while ensuring discreet integration and reliable performance as part of a professional audio system.
Description
Up 4S is a discreet, two-way, passive 4” speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
Up 4S features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.
The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4S speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.
The wide 150° conical coverage of Up 4S makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage leading to a reduction in installation cost. A shallow steel back can allows installation in ceilings with minimal cavity depth. An integral fixing system is included to achieve a simple and clean installation. Up 4S has a steel back, perforated steel grille and finished in neutral white.
Each Up 4S can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
Up 4S Features
- 4” coaxial driver
- Discreet size with shallow back can
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available
Resources & Downloads
Data sheets, manuals and resources for the Up 4S
Interested in this product?
Our AV experts are ready to help you find the perfect solution for your project.
Quick Specs
- TYPE
- Two-way, full range, passive, ceiling speaker
- FREQUENCY RESPONSE (with preset)
- 110Hz - 18kHz ± 3dB -10dB @ 85Hz
- DRIVERS
- LF: 4” (105mm), Polypropylene injection moulded, HF: 0.7” (20mm) Silk Dome
- RATED POWER
- 15W (AES) 30W (Peak)
- NOMINAL IMPEDANCE
- 8Ω
Technical Specifications
- TYPE
- Two-way, full range, passive, ceiling speaker
- FREQUENCY RESPONSE (with preset)
- 110Hz - 18kHz ± 3dB -10dB @ 85Hz
- DRIVERS
- LF: 4” (105mm), Polypropylene injection moulded, HF: 0.7” (20mm) Silk Dome
- RATED POWER
- 15W (AES) 30W (Peak)
- NOMINAL IMPEDANCE
- 8Ω
- SENSITIVITY (1W/1m)
- 86dB
- MAXIMUM SPL
- 98dB (cont), 101dB (peak)
- CROSSOVER
- 3.5kHz passive
- RECOMMENDED HIGH-PASS FILTER
- 24dB/octave @ 85Hz
- TRANSFORMER TAPS @ 70V
- 8,4,2,1,0.5W
- TRANSFORMER TAPS @ 100V
- 8,4,2,1W
- DISPERSION (-6dB)
- 150˚ conical
- BACK CAN
- Zinc-plated Stee
- BAFFLE
- ABS
- PROTECTIVE GRILLE
- Perforated steel with cloth backing
- FIRE RATING
- UL94-V0
- CONNECTORS
- 4 Pin Euroblock with link out
- FITTINGS
- C-ring support backing plate
- DIMENSIONS (inc. Grille)
- (Ø) 202mm x (D) 144mm (Ø) 7.95” x (D) 5.67”
- CUT-OUT DIAMETER
- 178mm (7.01”)
- WEIGHT
- 2.2kg (4.9lbs)
- INCLUDED ACCESSORIES
- 2 tile support rails (for 2 ft or 600 mm tile spans), cutout template, paint shield, removable locking multi-pin connector
- RECOMMENDED SUB
- Sub 10
- RECOMMENDED AMPLIFIER
- Zone 4P, Zone 8P or SmartAmp series
Up 4S is a discreet, two-way, passive 4” speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
Up 4S features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.
The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4S speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.
The wide 150° conical coverage of Up 4S makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage leading to a reduction in installation cost. A shallow steel back can allows installation in ceilings with minimal cavity depth. An integral fixing system is included to achieve a simple and clean installation. Up 4S has a steel back, perforated steel grille and finished in neutral white.
Each Up 4S can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
- 4” coaxial driver
- Discreet size with shallow back can
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 110Hz - 18kHz ± 3dB -10dB @ 85Hz |
| DRIVERS | LF: 4” (105mm), Polypropylene injection moulded, HF: 0.7” (20mm) Silk Dome |
| RATED POWER | 15W (AES) 30W (Peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 86dB |
| MAXIMUM SPL | 98dB (cont), 101dB (peak) |
| CROSSOVER | 3.5kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 85Hz |
| TRANSFORMER TAPS @ 70V | 8,4,2,1,0.5W |
| TRANSFORMER TAPS @ 100V | 8,4,2,1W |
| DISPERSION (-6dB) | 150˚ conical |
| BACK CAN | Zinc-plated Stee |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| FIRE RATING | UL94-V0 |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 202mm x (D) 144mm (Ø) 7.95” x (D) 5.67” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 2.2kg (4.9lbs) |
| INCLUDED ACCESSORIES | 2 tile support rails (for 2 ft or 600 mm tile spans), cutout template, paint shield, removable locking multi-pin connector |
| RECOMMENDED SUB | Sub 10 |
| RECOMMENDED AMPLIFIER | Zone 4P, Zone 8P or SmartAmp series |
